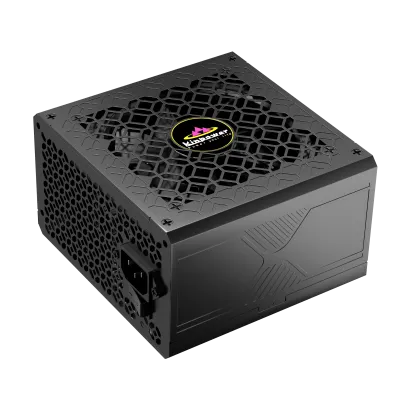

KP-850PM
80+ Gold ATX 3.1 Series Full-Modular Premium Power Supply
Next-generation power delivery engineered for flagship gaming hardware and intensive AI computing environments. Featuring native ATX 3.1 architecture, an ultra-reliable LLC/DC-DC layout, and premium full-modular flat cabling for advanced thermal dynamics and absolute build cleanlines.
Input Voltage Range: 110-240V | PFC: APFC 90% Plus Gold Level Architecture
Efficiency Rating: ≥90% High-Efficiency Output (LLC/DC-DC Layout)
Cooling Hardware: 12cm Black Fan with High-End Hydraulic Dynamic Bearing (HDB)
Compact Chassis Dimensions: 140*150*86mm Structural Form Factor
8-Level Heavy Duty Protections Array: OVP, UVP, SCP, OCP, OTP, OPP, NLO, SIP
Global Standards Compliance: CE, FCC, RoHS & ERP Lot6 Certified

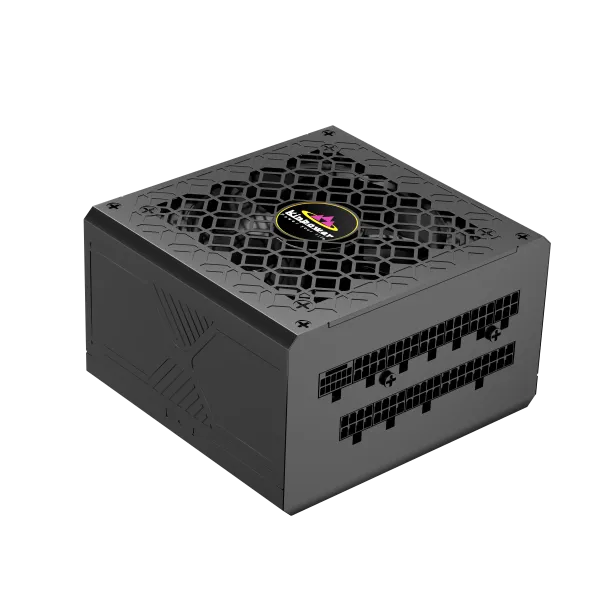

KP-850PM ATX 3.1 FULL-MODULAR POWER SUPPLY
The KINPOWER KP-850PM Series power supplies deliver certified 80 PLUS Gold level power efficiency paired with wide 110-240V voltage input. Native ATX 3.1 implementation and ultra-flexible full-modular flat cabling provide elite system delivery.

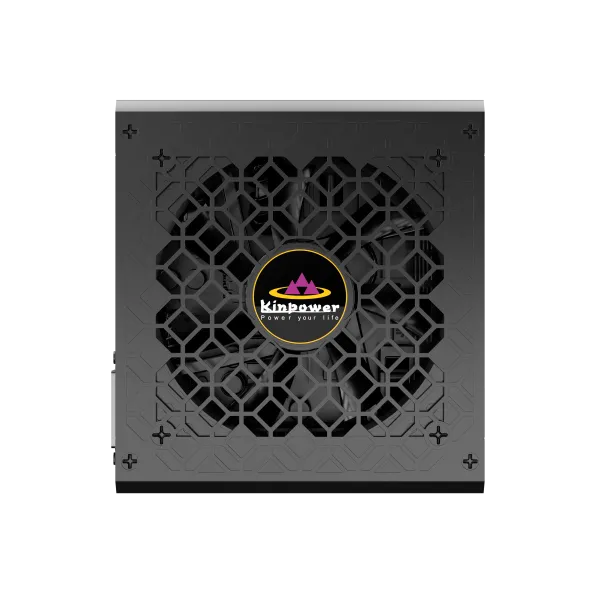

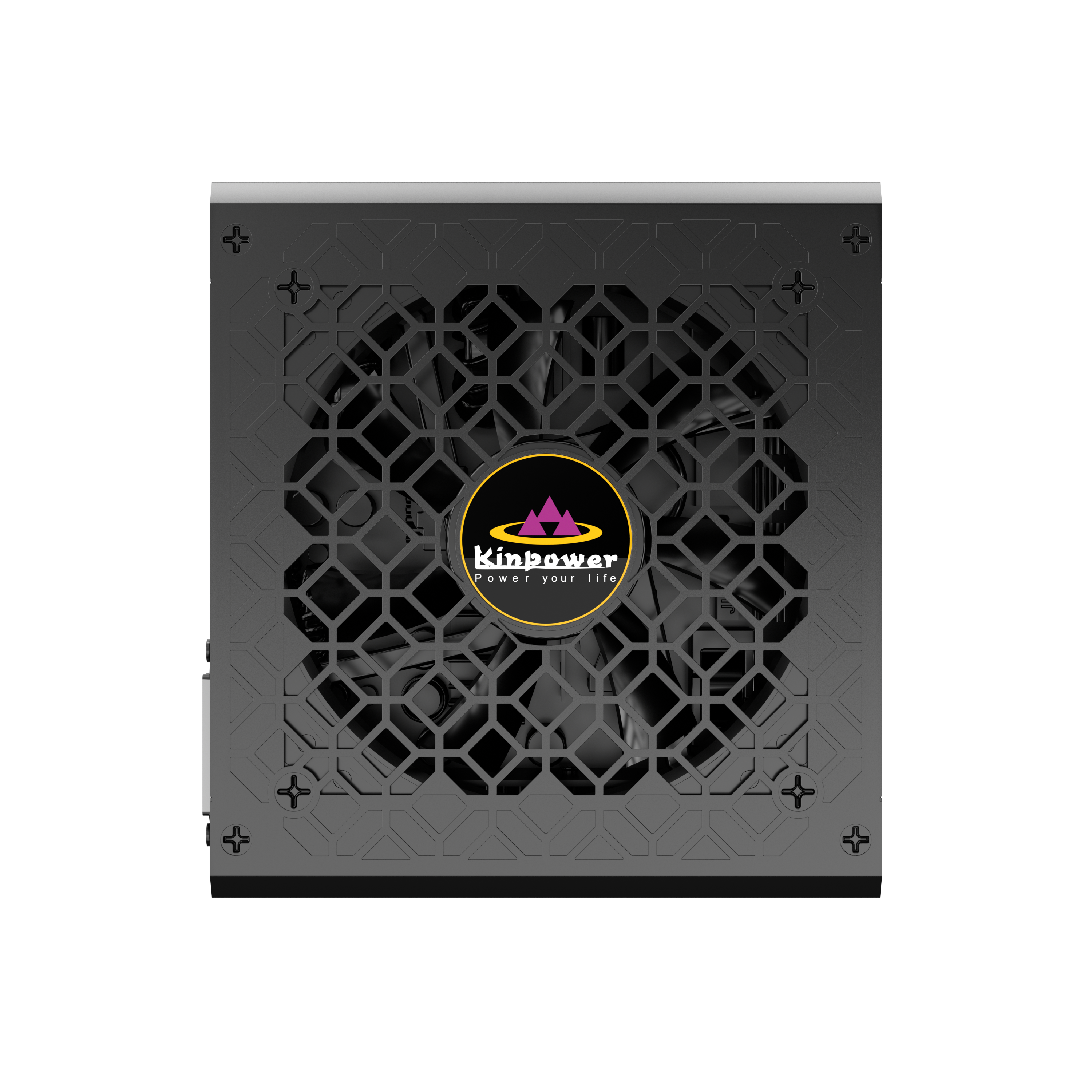

12cm BLACK HDB FAN WITH THERMAL CONTROL
Equipped with a premium 12cm Hydraulic Dynamic Bearing (HDB) black fan. It features a smart thermal speed curve that scales based on real-time stress, delivering strong static pressure during full continuous power workloads while minimizing acoustics under lower system states.

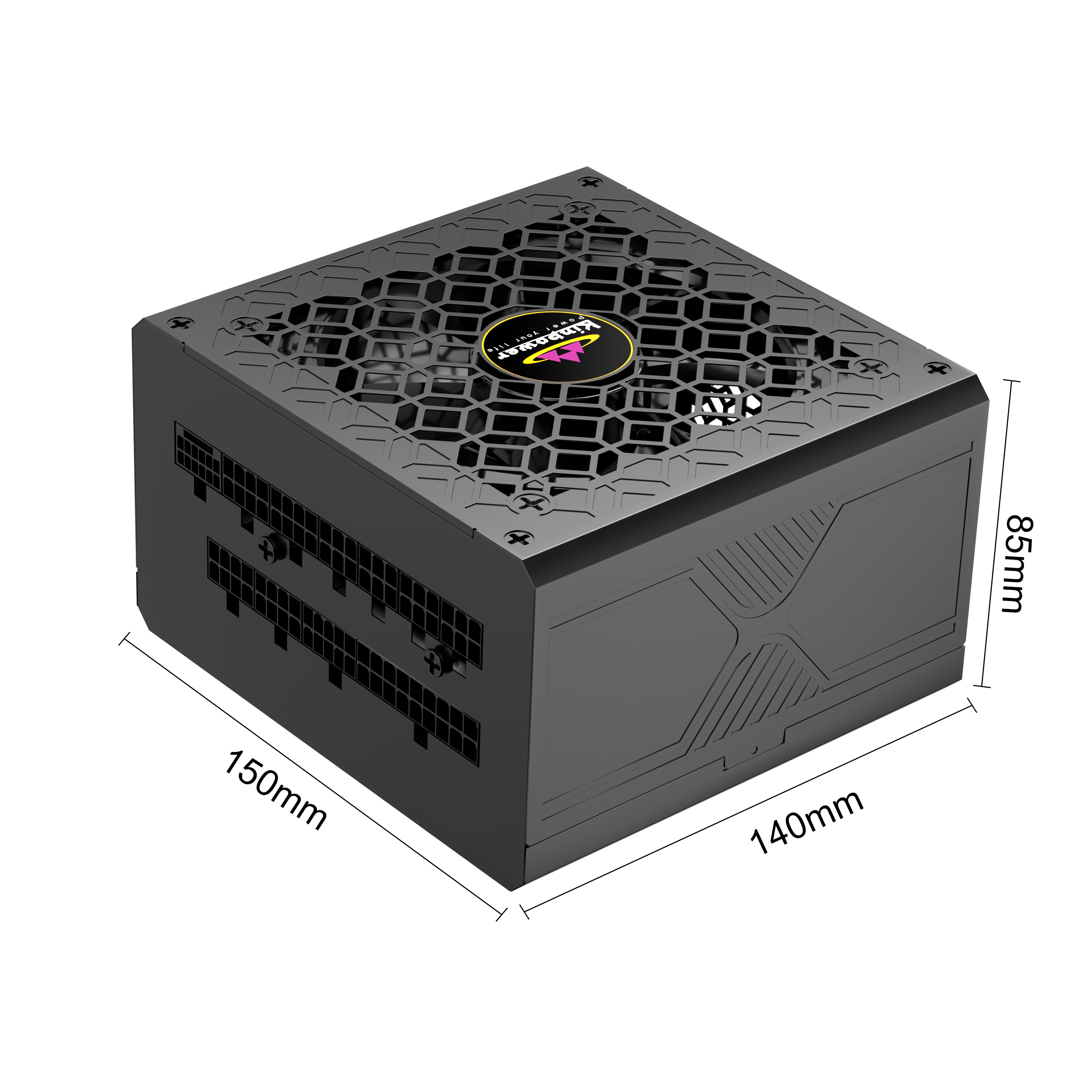

COMPACT 140*150*86mm FORM FACTOR
Engineered with a streamlined 140*150*86mm case layout. This highly compact footprint optimizes spatial installation inside all mainstream modern ATX gaming chassis, freeing up valuable physical space for clean flat cable concealment.
Efficiency
GOLD LEVEL ≥90%
Delivers up to 90% plus energy conversion efficiency using advanced LLC/DC-DC circuit architecture to minimize thermal waste.
Cooling
12cm HDB BLACK
Utilizes an elite hydraulic bearing 120mm silent system fan to guarantee continuous reliability and long lifespans.
Compliance
GLOBAL CERTIFIED
Fully compliant with global safety and energy regulatory criteria, including CE, FCC, RoHS, and ERP Lot6 mandates.
Protections
8-LEVEL SAFESHIELD
Complete enterprise hardware protections array: OVP, UVP, SCP, OCP, OTP, OPP, NLO, and SIP safeguards.
Topology
APFC 90% PLUS
Combines high-performance Active PFC power correction with a native LLC/DC-DC stable rail output configuration.
| Connector View | Cable Type | Quantity | Total Length |
|---|---|---|---|
 | ATX Cable 20+4 PIN (Mesh Sleeve) | 1 | 550mm |
 | EPS/ATX12V CPU Cable 8-PIN (4+4) | 2 | 650mm |
 | PCIe Cable 8-PIN (6+2) + (6+2)P dual connector | 2 | 550mm + 150mm |
| 12+4pin native PCIe 5.1 / GEN 5.1 (450W/600W) | 1 | 600mm |
 | SATA Power Cable (3 ports per cable) | 3 | 450mm + 150mm + 150mm |
| Peripheral Molex Cable (3 ports per cable) | 1 | 450mm + 150mm + 150mm |
| Weight | 1.95 kg |
| ATX12V Version | v3.1 & PCIe 5.1 |
| Continuous Output Rated Temperature | 50°C |
| Continuous Power (Watts) | 650 - 1000 Watts |
| Fan Size (mm) | 120mm |
| MTBF (Hours) | 100,000 hours |
| Multi-GPU Ready | Yes |
| 80 PLUS Efficiency | 80+ GOLD |
| PSU Form Factor | ATX (Full Modular) |
