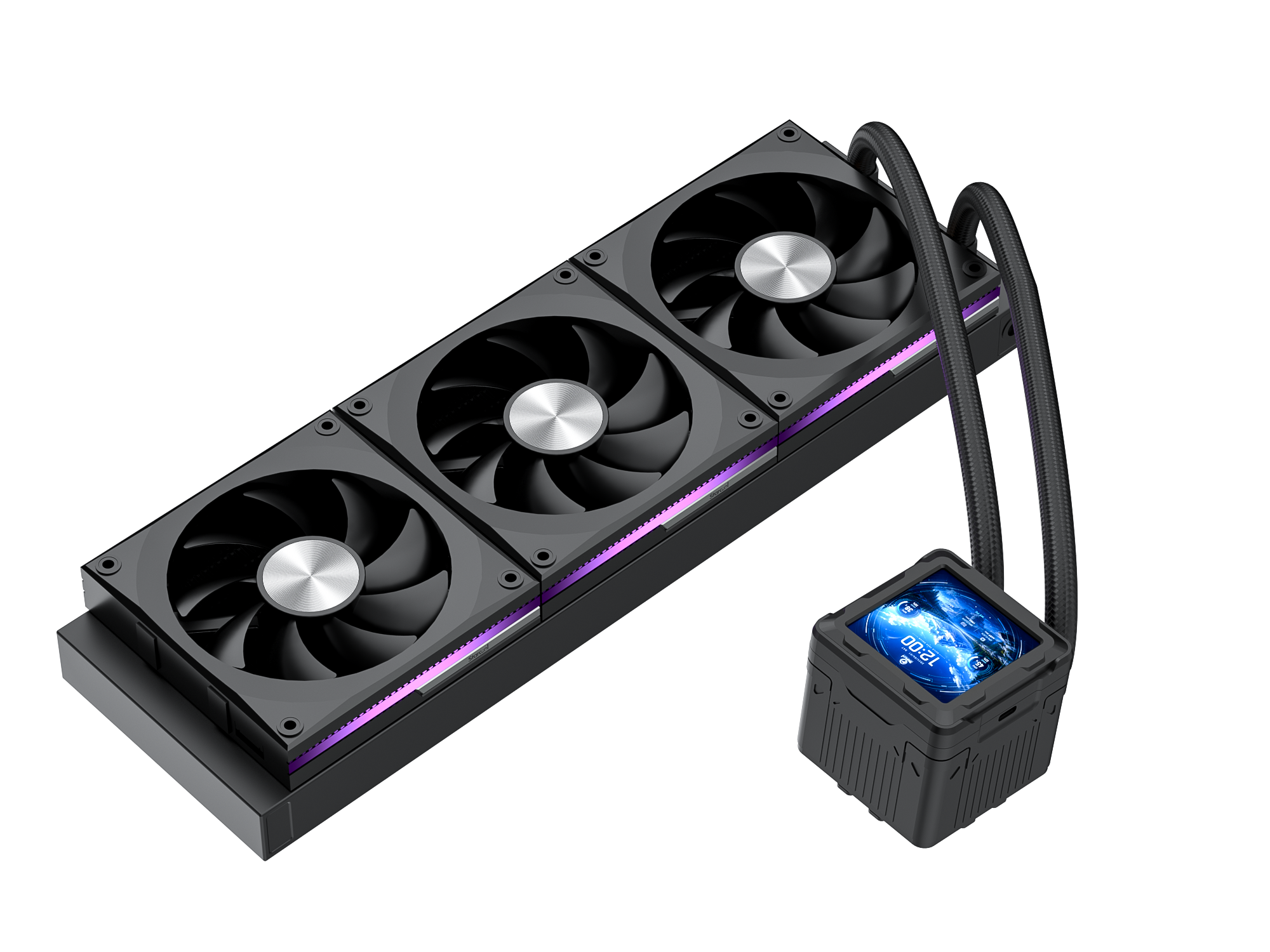

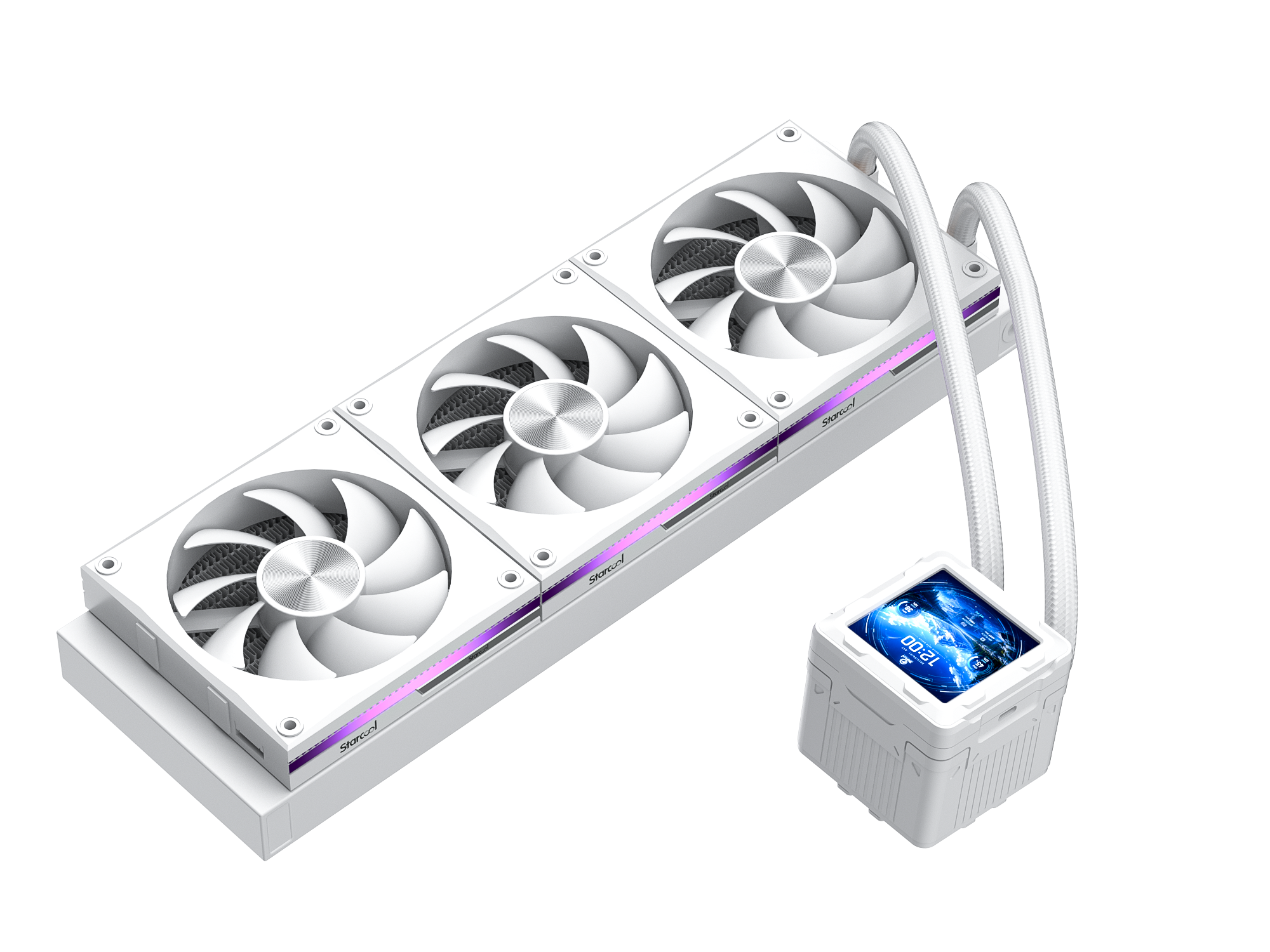

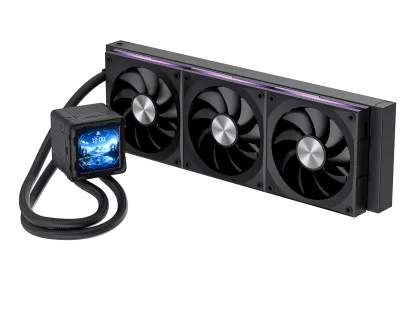

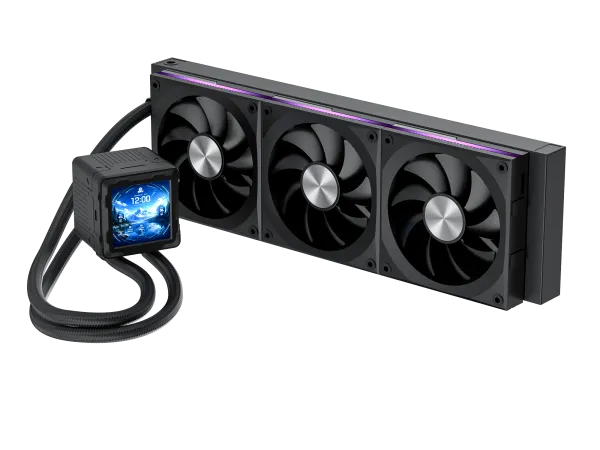

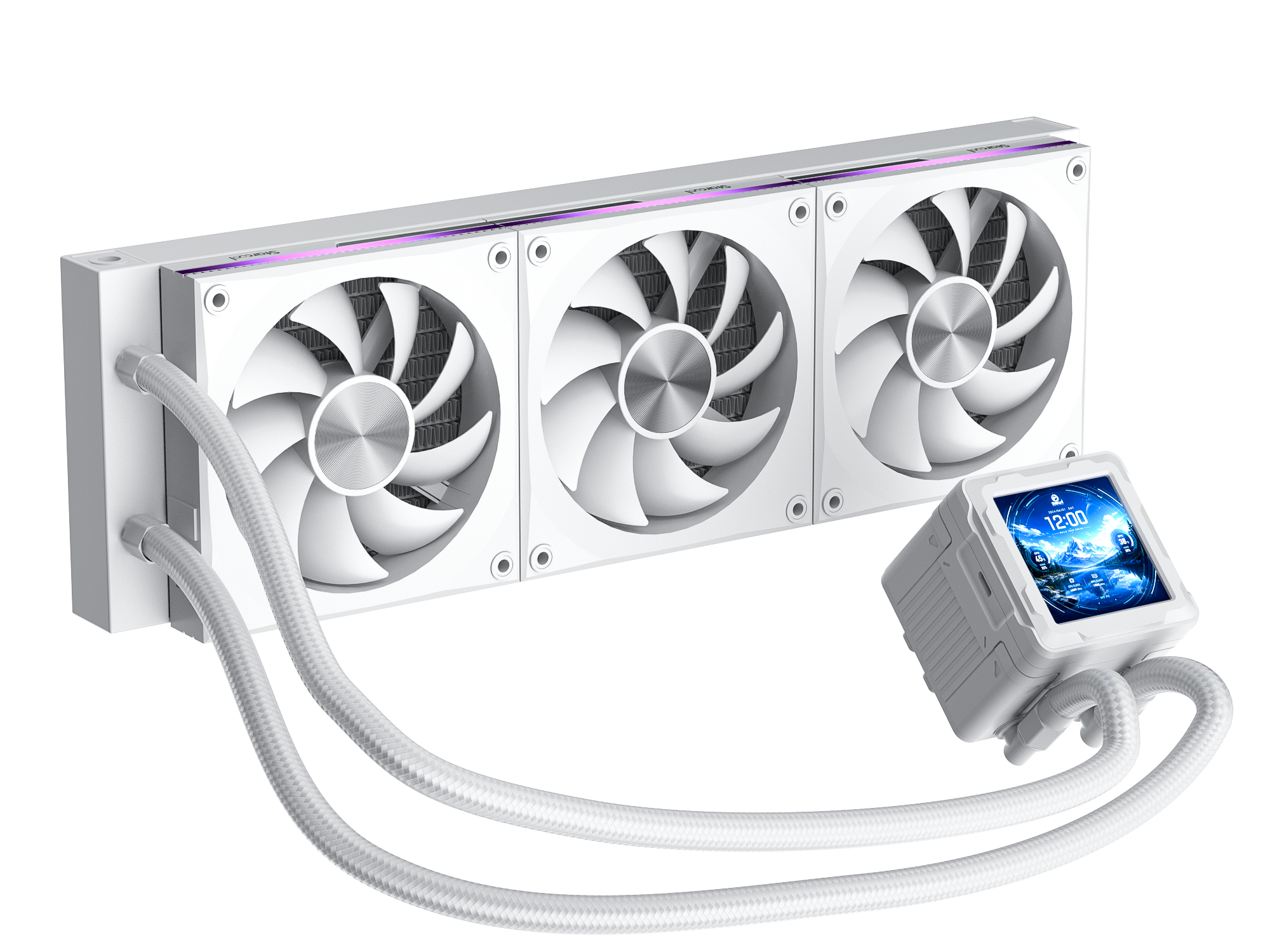

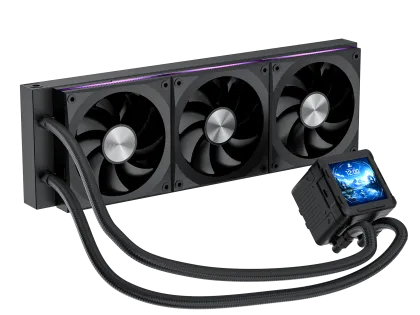

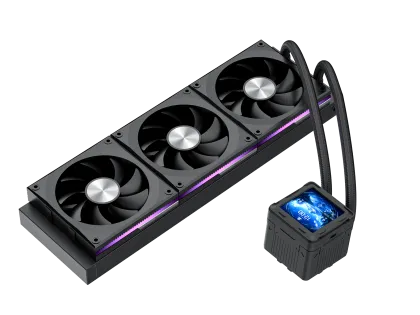

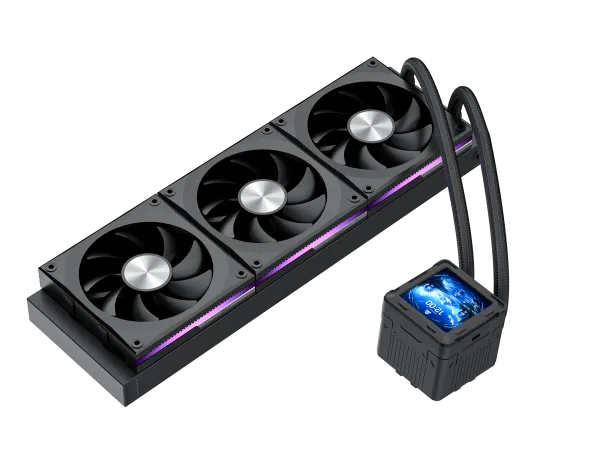

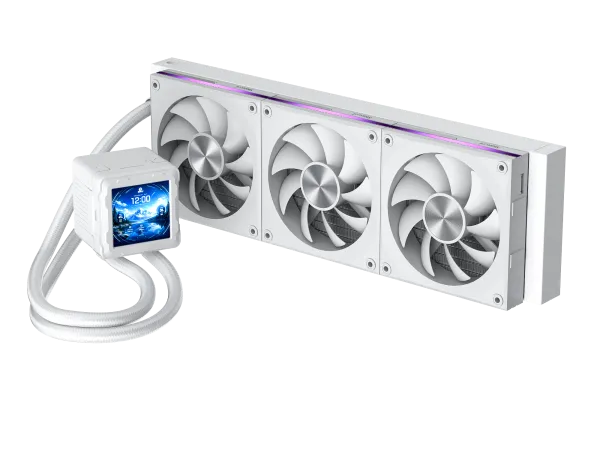

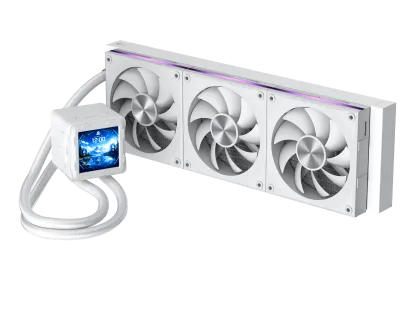

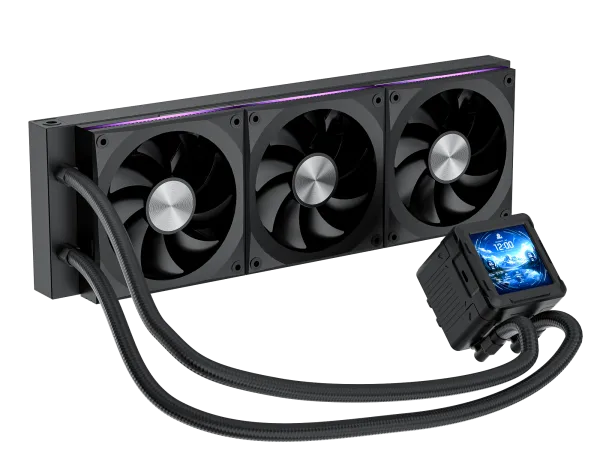

STC-T360
T360 VISION ARGB
BUILT FOR THE BIG SCREEN
NEXT-GEN GAMING VISUALS
DYNAMIC HARDWARE TELEMETRY IN REAL-TIME
DISPLAY INNOVATION2.73” Ultrawide IPS LCD
Built for the Screen
Open up a new visual experience with a magnificent 2.73” IPS LCD screen. It delivers an expansive and incredibly vivid canvas for your dynamic setup. Mounted on a premium damped hinge, the screen tilts from 0° up to 90°, ensuring perfect readability and direct visual presence even when your chassis is placed at an angle.
PUMP ARCHITECTUREDriven by Gen 6 Pump
Uncompromised Core Performance
Engineered for maximum thermal transfer, our 6th-generation high-performance pump features a 3-phase, 6-slot motor paired with advanced FOC closed-loop control. Operating smoothly at speeds up to 3,000 RPM, it works in perfect synergy with a precision-optimized high-density microfin copper base to neutralize elite-tier CPU heat under full loads while keeping operational noise to an absolute minimum.
INTELLIGENT ECOSYSTEMSmart Ecosystem
Full Control with Intelligence

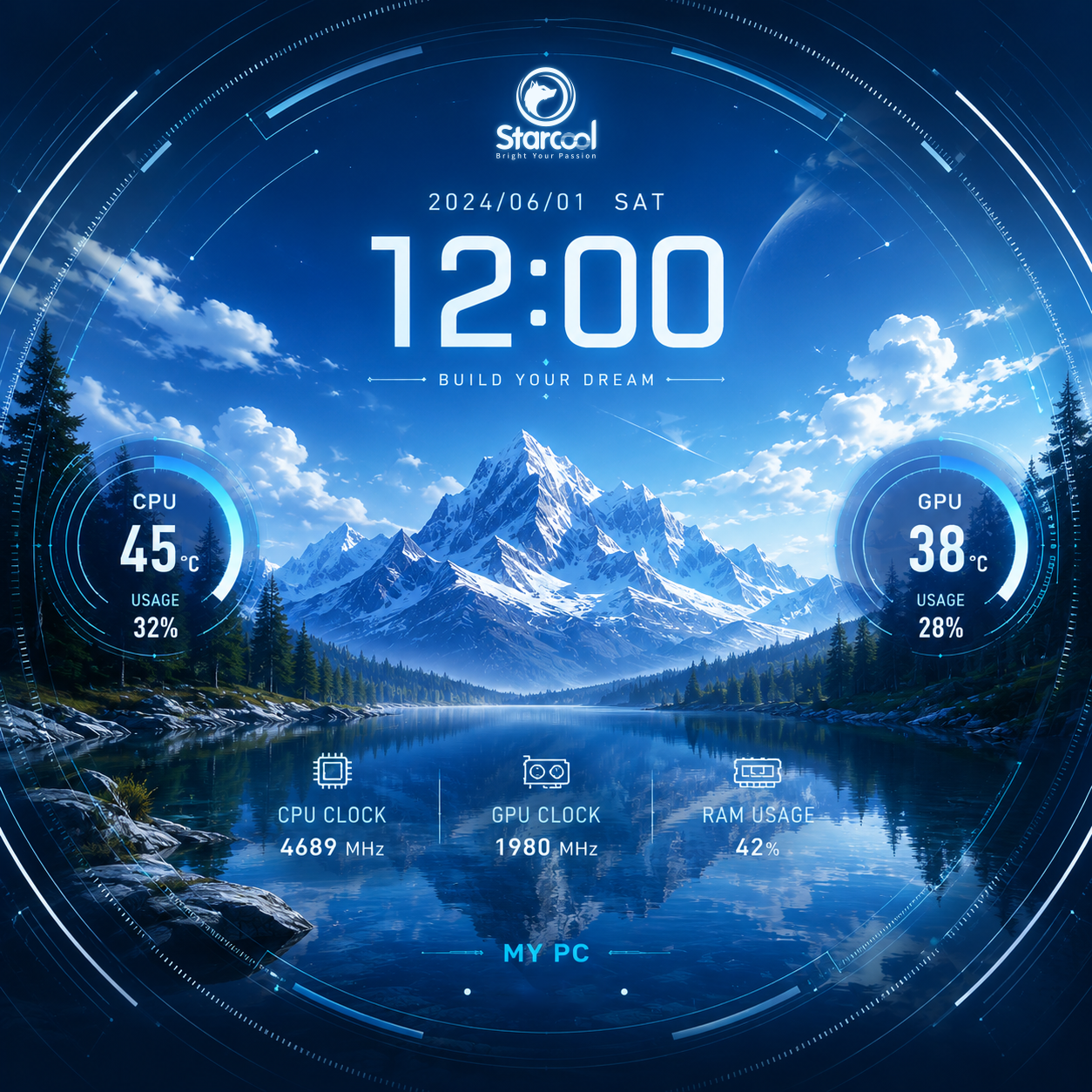

Unleash the full potential of the ultrawide display with our unified software suite. Seamlessly switch between three engineered telemetry profiles to match your personal ecosystem:
RADIATOR FANSClosed-Wheel Fans
High Static Pressure, Absolute Silence
Outfitted with all-new closed-wheel ARGB fans engineered strictly for high-density radiators. Operating seamlessly within a wide 800-2000 RPM PWM spectrum, they deliver a devastating 85 CFM airflow and 2.41 mmAq static pressure. The structural reinforced perimeter frame entirely eliminates lateral air turbulence, maximizing targeted airflow directly through the fins at near-silent operation.
TECHNICAL DATASPECIFICATIONS
Pump & Radiator
| Pump Display | LCD / 2.73 Inch |
| Radiator Size | 277 × 118 × 34 mm |
| Nominal Voltage | DC 12V |
| Rated Power | 3.4 W |
| Motor Speed | 3000 RPM |
| Pipe Material | EPDM + IIR |
| Light Effect | ARGB |
| Pump Noise | 36 ± 10% dBA |
| Pump Interface | 2510-3Pin Auto RGB |
ARGB Radiator Fan
| Fan Size | 120 × 120 × 25 mm * 3 |
| Fan Speed | 800 - 2000 RPM ± 10% |
| Fan Interface | 3Pin 5V + PWM 4Pin |
| Max Airflow | 85 CFM ± 10% |
| Wind Pressure | 2.7 mmH₂O ± 10% |
| Fan Noise | 38 dBA ± 10% |
| Product Code | ST003B |
