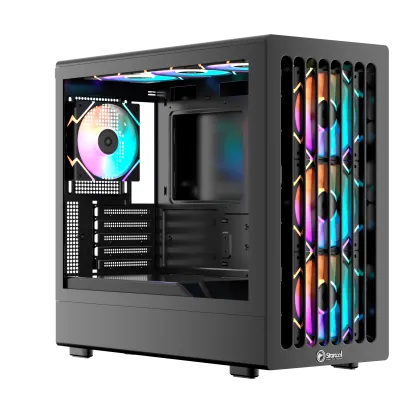

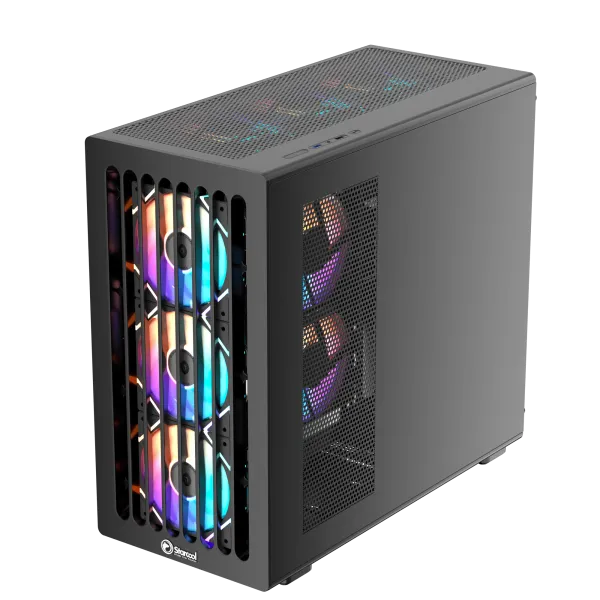

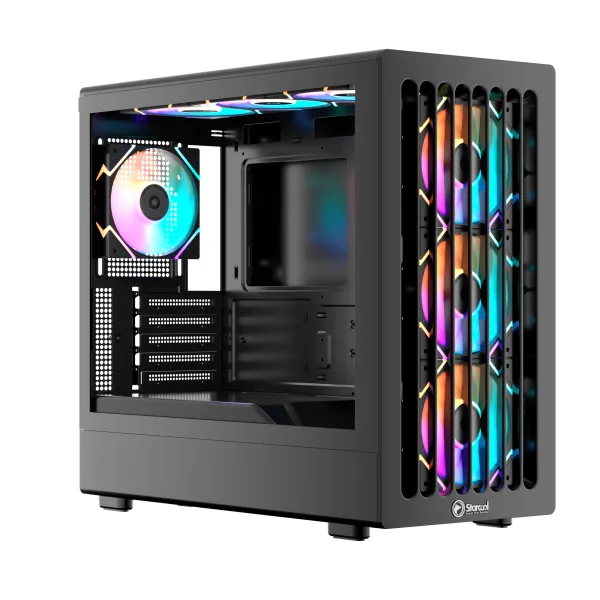

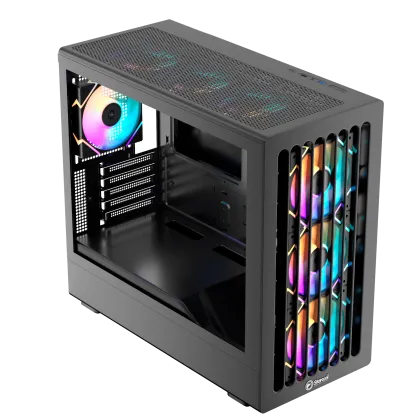

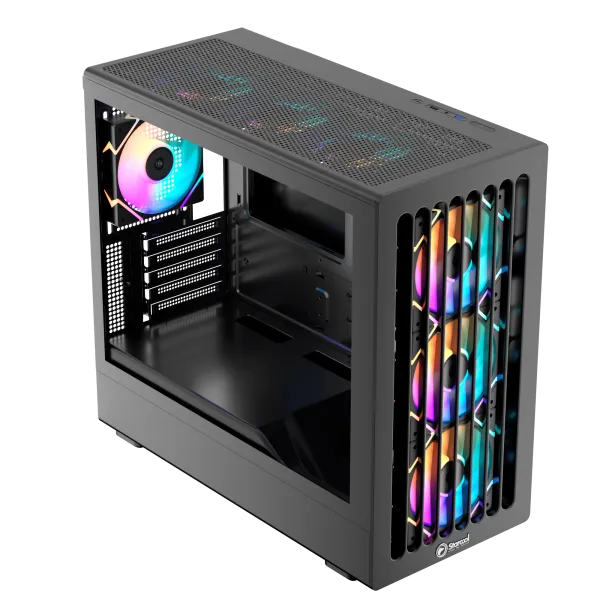

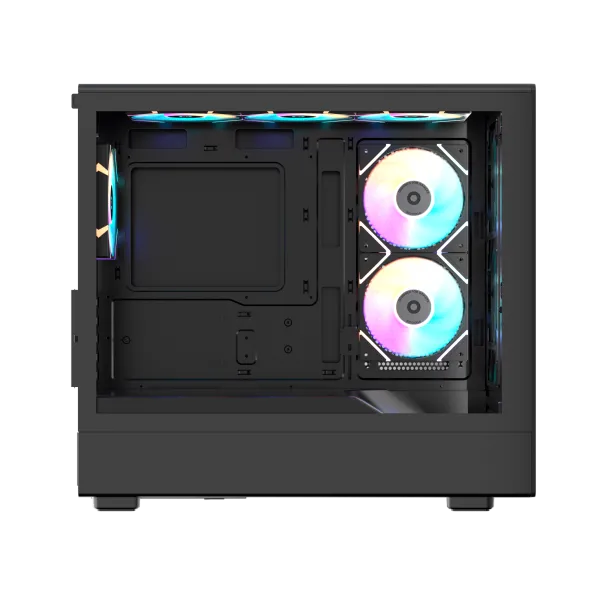

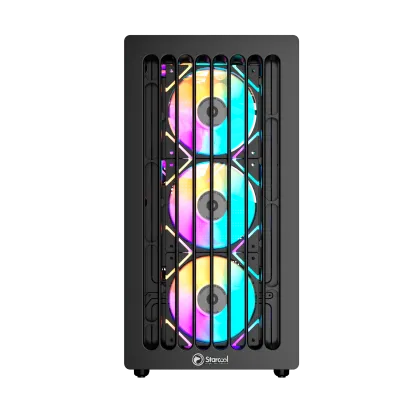

STC-470 MATX
STC-470 ATX Meticulously downsized for desktop setups with an overall height of just 443mm. However, thanks to its 470mm internal hardware length, it effortlessly accommodates up to 430mm monster graphics cards (such as flagship RTX 4090 series), ensuring zero compromise on GPU power.
Key Features
STC-470MATX Innovation
Panoramic View
Designed with double-sided tempered glass (front + left) to deliver an unobstructed, premium presentation of your internal hardware.
Massive GPU Clearance
Offers an exceptional graphics card clearance of up to 430mm, comfortably accommodating flagship GPUs.
High-Capacity Airflow
Supports versatile cooling arrays with up to 120mm or 140mm fans, ensuring comprehensive ventilation across the entire system.
Advanced Liquid Cooling
The top panel is highly versatile, perfectly supporting 360mm liquid cooling radiators for premium thermal performance.
Modern I/O Interface
Features a flexible top-panel interface including Type-C * 1 (Optional), HD Audio, and USB 3.0 * 2.
Compact Powerhouse
Optimized space efficiency specifically tailored for high-performance M-ATX and ITX gaming configurations.
Technical Specifications
Product Parameters
| Model | STC-470MATX Series (Dual-Glass Version) |
| Chassis Dimensions | L475 * W225 * H443MM (including footpads) |
| Hardware Dimensions | L470 * W225 * H430MM (metal parts) |
| Package Dimensions | L544 * W286 * H506MM |
| Panels | Double-sided glass (Front + Left Side), Right side metal |
| Applicable Motherboard | M-ATX / ITX |
| Video Card Support | Up to 430MM |
| CPU Heat Sink | Supports a maximum of 165MM |
| Power Supply | Supports a maximum of 200 power supply |
| PCIE Support | 5 |
| Air Cooling System | Top: 120MM fan*3 (or 140MM fan*2) / Front: 120MM fan*3 (or 140MM fan*2) / PSU Warehouse: 120MM fan*3 / Rear: 120MM fan*1 |
| Water Cooling Support | Top supports 360 cold exhaust |
| Hard Disk Support | HDD*2 and SSD*1 (or HDD*1 and SSD*2) |
| Interface Support | HD Audio + USB 3.0*2 (optional 2.0 flat cable + 3.0) + TYPE-C*1 (optional) |
