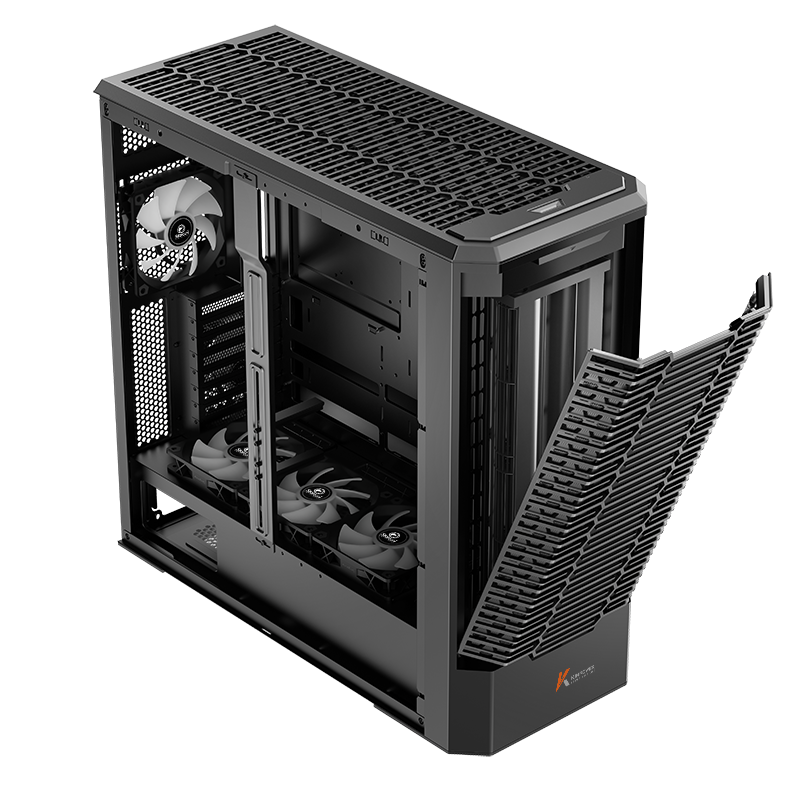

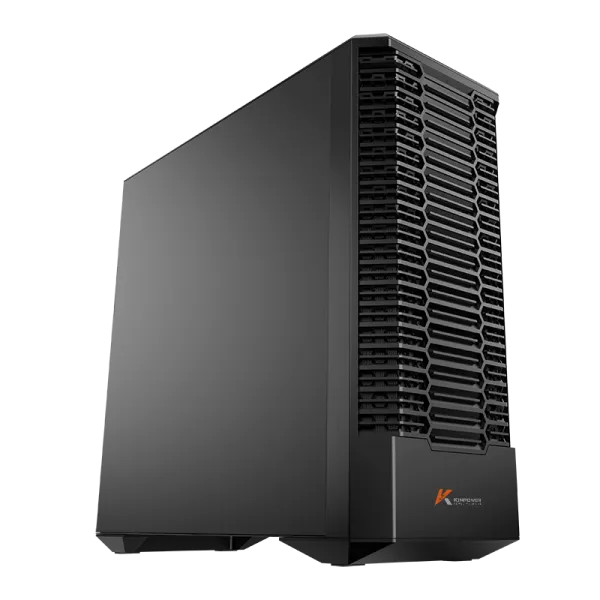

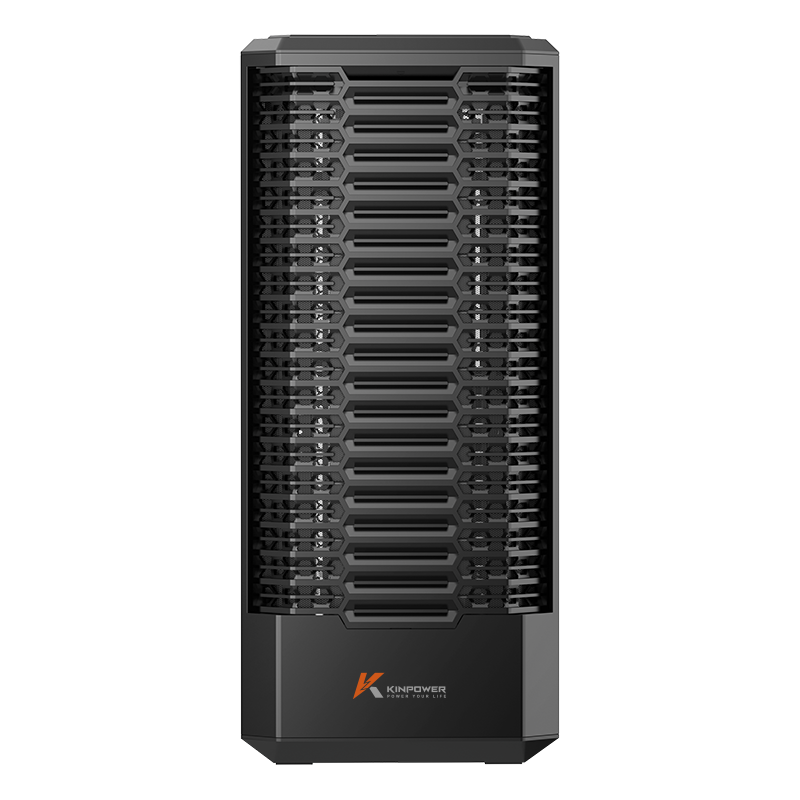

01 / EXTERIOR
Clean workstation presence
Clip-on top cover, magnetic I/O dust cover and a restrained workstation-focused exterior language.

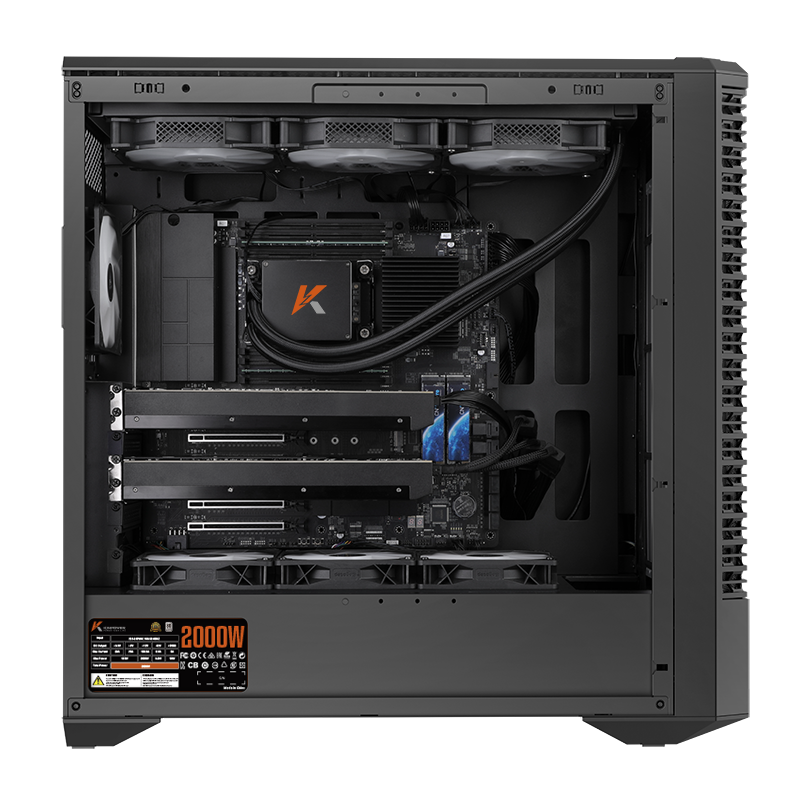

Workstation Chassis · STC Series
STC-QC1
Built for serious workstation expansion.
A spacious workstation chassis designed around SSI-EEB / E-ATX / ATX / Micro-ATX / Mini-ITX platforms, high-capacity graphics cards and flexible multi-zone cooling.
SSI-EEB Compatible 8 Expansion Slots Up to 420 mm Radiator 165 mm CPU Cooler
Design
Functional geometry.
Workstation scale.
The product story is structured like a premium hardware product page: large visual blocks first, then concise engineering details and specifications.

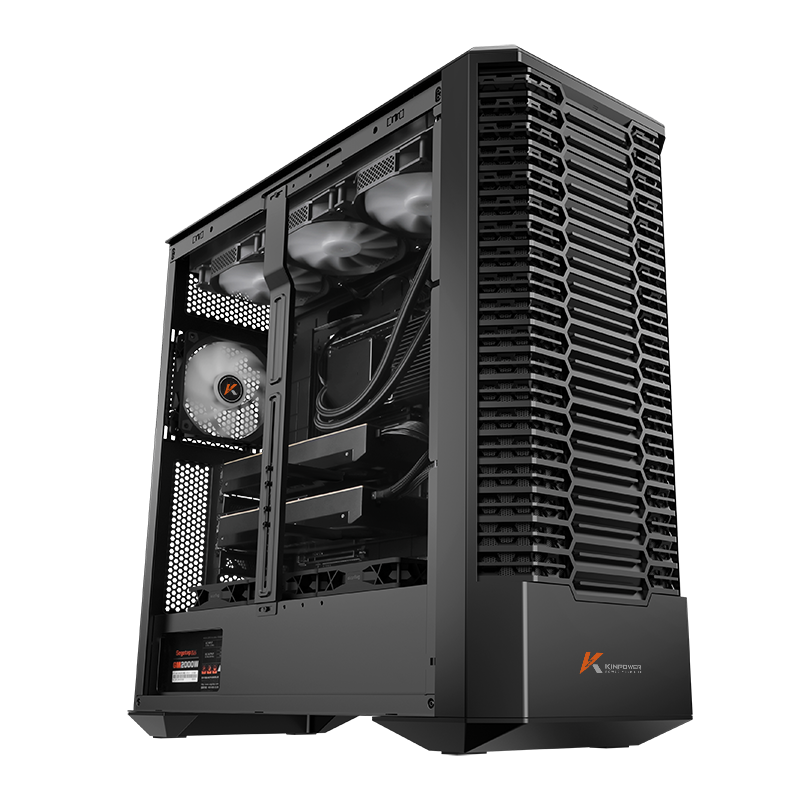

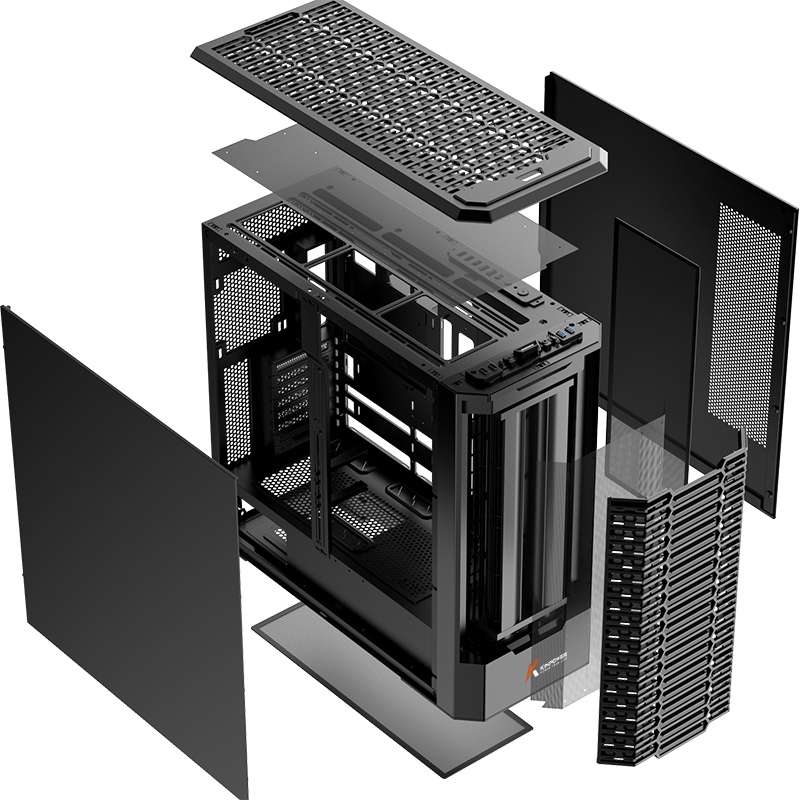

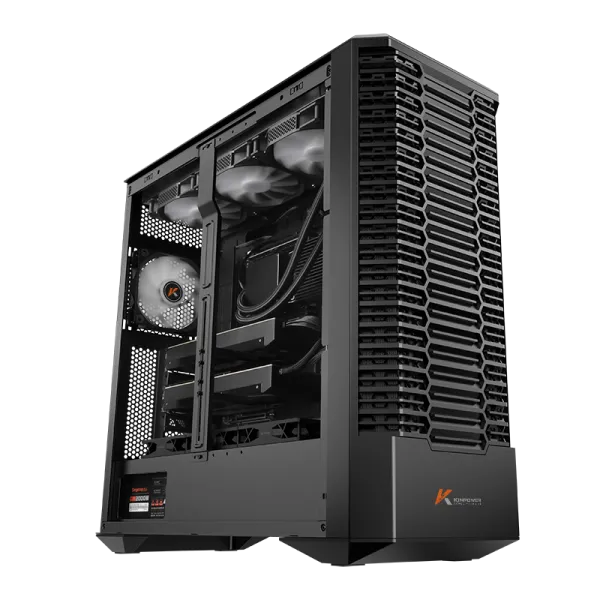

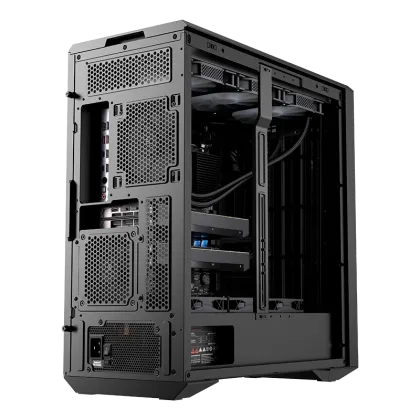

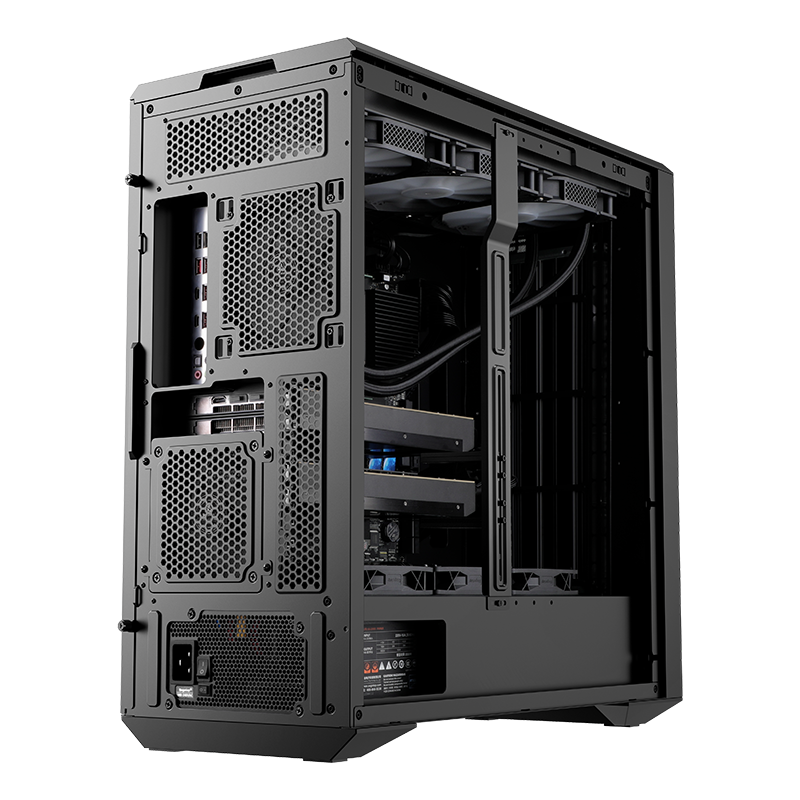

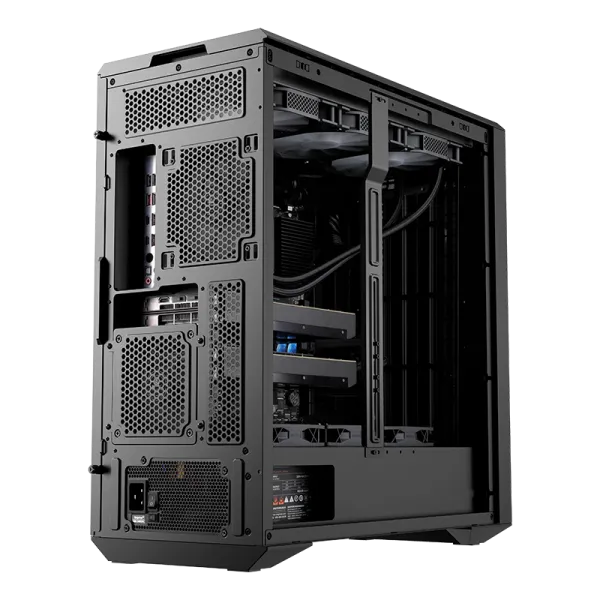

02 / SIDE PANEL
Metal on both sides
Left and right side panels use metal construction for a practical workstation enclosure.
03 / I/O
Essential connectivity
1 × USB 3.0, 1 × USB 2.0, Type-C and HD Audio, arranged for everyday workstation access.
8
PCI expansion slots
455 mm
Max GPU length without front fan
420 mm
Top radiator support
200 mm
Maximum PSU length
Cooling & Expansion
Designed around
airflow freedom.
Multiple fan locations and a large top radiator zone give system builders room to tune airflow, acoustics and component placement.
Up to 3 × 140 mm in key zones.
Front: up to 3 × 120 mm / 3 × 140 mm · Top: 3 × 120 mm / 3 × 140 mm · Rear: 1 × 120 mm / 1 × 140 mm · PSU shroud: 3 × 120 mm · PCI slot area: 1 × 120 mm.

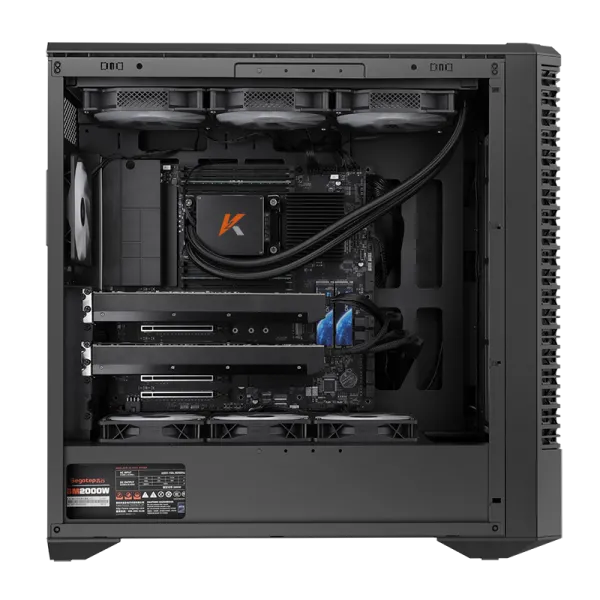

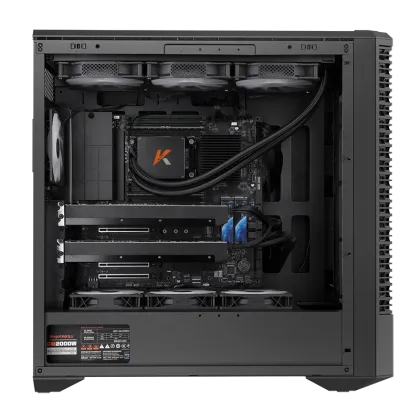

04 / COOLING MAP
Flexible fan placement
Front and top support up to three 120 / 140 mm fans, with additional rear, PCI and PSU-shroud positions.

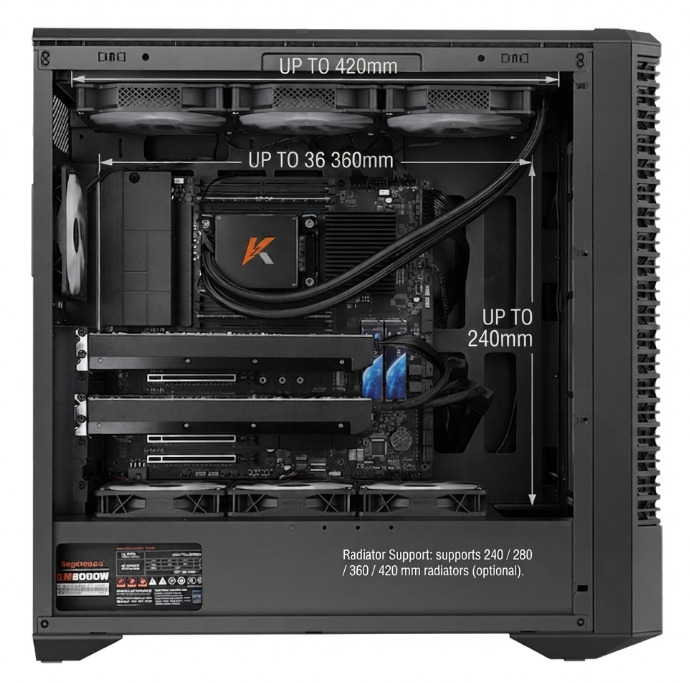

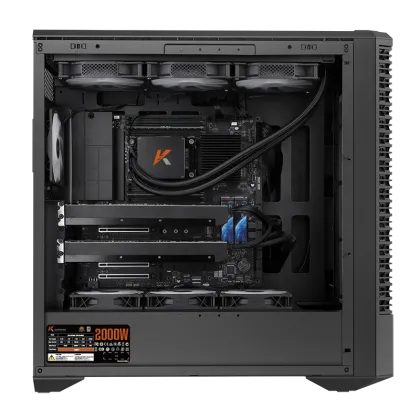

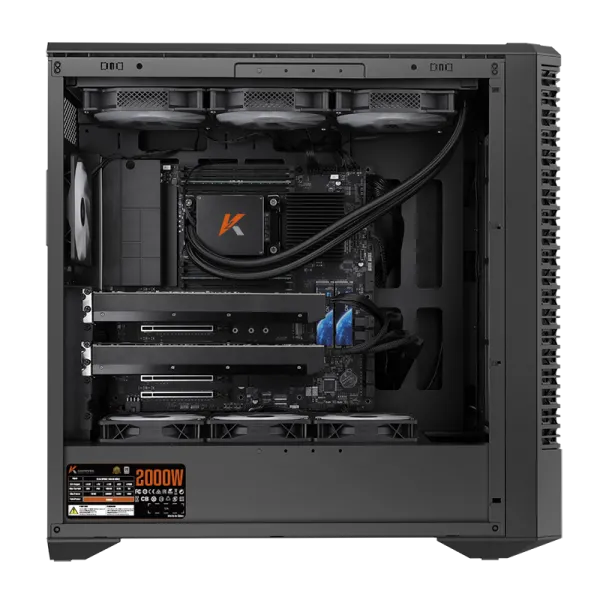

05 / WATER COOLING
Large top radiator zone
Top mount supports 240 / 280 / 360 / 420 mm radiators (optional).

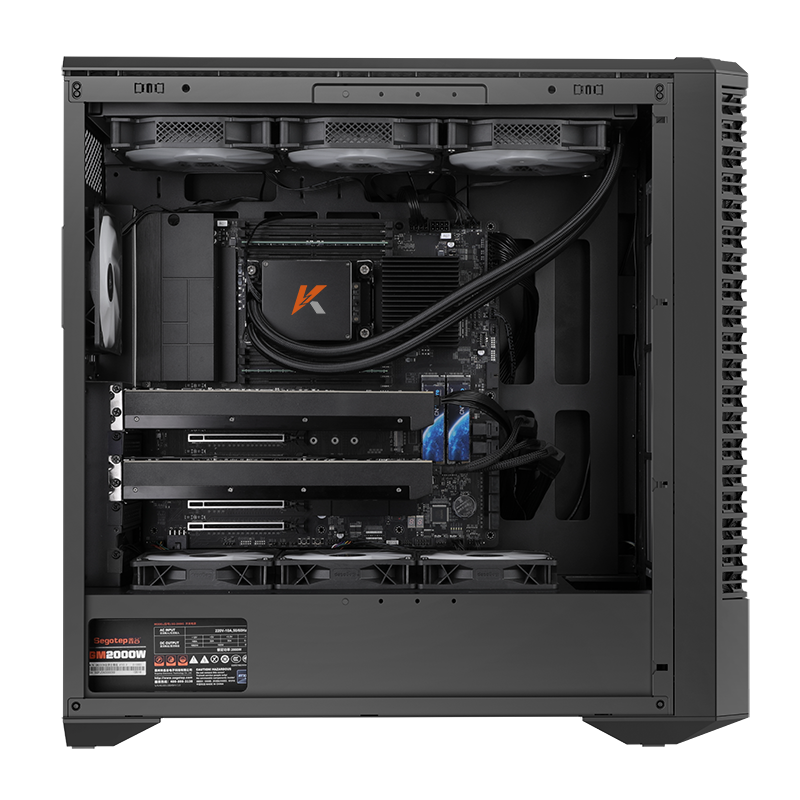

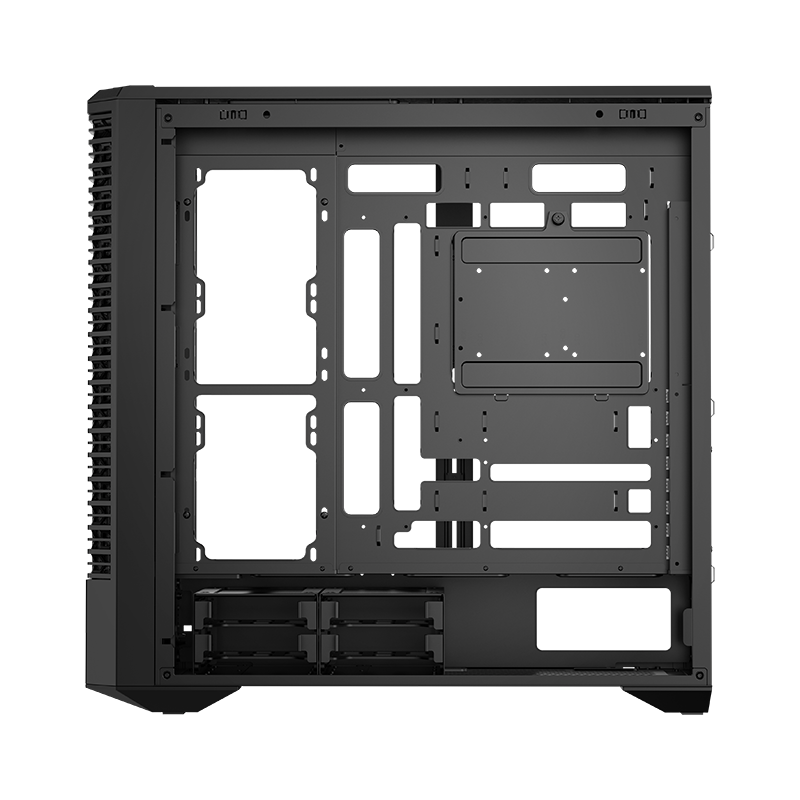

06 / PLATFORM
From ITX to SSI-EEB
Broad motherboard support with 165 mm CPU cooler clearance and up to 455 mm GPU length.
Design / Specification
STC-QC1
Specification.
Technical details below are transcribed from the STC-QC1 specification sheet.
| Case Model | STC-QC1 |
|---|---|
| Front Panel | Clip-on top cover, magnetic-dust-cover I/O area; workstation-oriented front panel design. |
| I/O Surface | 1 × USB 3.0 + 1 × USB 2.0 + Type-C + HD Audio |
| Top Panel Dust Filter | Top dust-filter configuration can be customized by project. |
| Side Panel | Left & right side with metal panels |
| Motherboard Compatible | SSI-EEB / E-ATX / ATX / Micro-ATX / Mini-ITX |
| PSU Form / Installation | Maximum PSU length: 200 mm |
| Structure Size (H × W × D) | 500 × 236 × 525 mm |
| Product Size (H × W × D) | 565 × 248 × 567 mm |
| Material | SPCC black, 0.8 mm – 1.0 mm |
| PCI Expansion Slots | 8 |
| Drive Bay 5.25" | 0 |
| Drive Bay 3.5" | Bottom with 4 × 3.5" HDD, compatible with 2.5" SSD |
| Drive Bay 2.5" | Internal board: 2 × 2.5" SSD, or 1 × 2.5" SSD + 1 × 3.5" HDD |
| Reserved Fan Ports | Front: 2 × cross-flow fan / 3 × 120 mm / 3 × 140 mm Top: 3 × 120 mm / 3 × 140 mm Rear: 1 × 120 mm / 1 × 140 mm PCI Slot: 1 × 120 mm PSU Shroud: 3 × 120 mm Internal Board: 3 × 120 mm (SSI-EEB / E-ATX cannot be installed at the same time) |
| CPU Cooler Height | 165 mm |
| Water Cooling | Top: 240 / 280 / 360 / 420 mm (optional) |
| Graphics Card Limit | 455 mm max without front fan / 430 mm max when front fan is installed inside the chassis structure |
| On Chassis | RGB strip, SYNC with motherboard (MB) |
| Logo Marks | Silkscreen LOGO |
| Package | EPS foam protective packaging + carton |
| Carton Size | 655 × 340 × 662 mm |
Gallery
Gallery
500 × 236 × 525STRUCTURE SIZE · MM
565 × 248 × 567PRODUCT SIZE · MM
655 × 340 × 662CARTON SIZE · MM
