STC-470-01
The STC-470ATX-01 is a high-performance ATX mid-tower chassis designed for maximum airflow and expansive hardware compatibility. Featuring a front mesh panel and a tempered glass side panel, it strikes a perfect balance between industrial cooling efficiency and modern aesthetics. It is built to house high-end components with its massive internal space and extensive fan support.
Tags: ATX PC Case
Key Features
STC-470ATX Innovation
High-Airflow Design

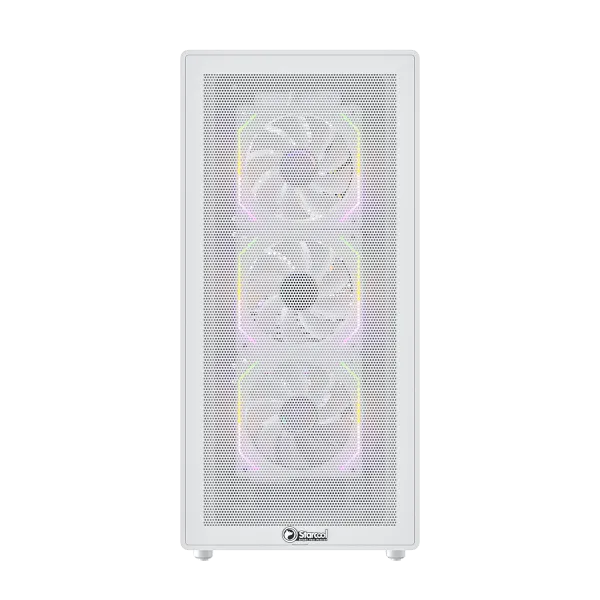

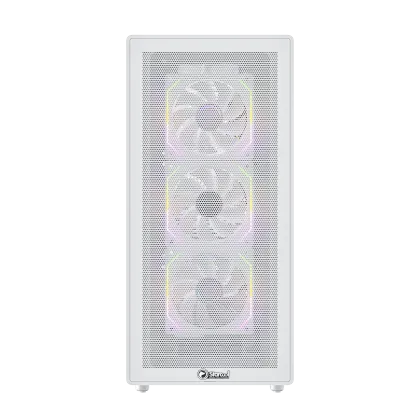

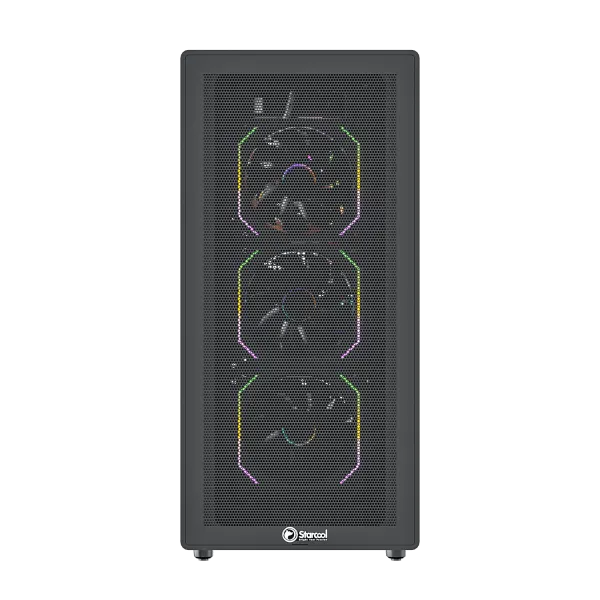

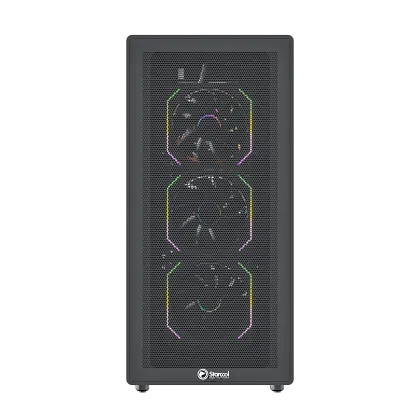

Equipped with a full front metal mesh panel to ensure optimal intake and heat dissipation for high-performance builds.
Extreme Cooling Capacity
Supports up to 10 fans in total, providing comprehensive airflow coverage for the CPU, GPU, and PSU areas.
Versatile Water Cooling
Highly compatible with liquid cooling setups, supporting up to a 360mm radiator on the top panel.
Massive GPU Clearance
Accommodates large-scale graphics cards up to 425mm in length, compatible with almost all flagship GPUs.
Tall CPU Cooler Support
Fits air coolers up to 170mm in height, allowing for the installation of premium tower heatsinks.
Sleek Hardware Display

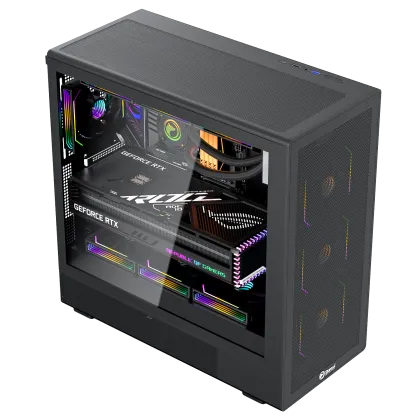

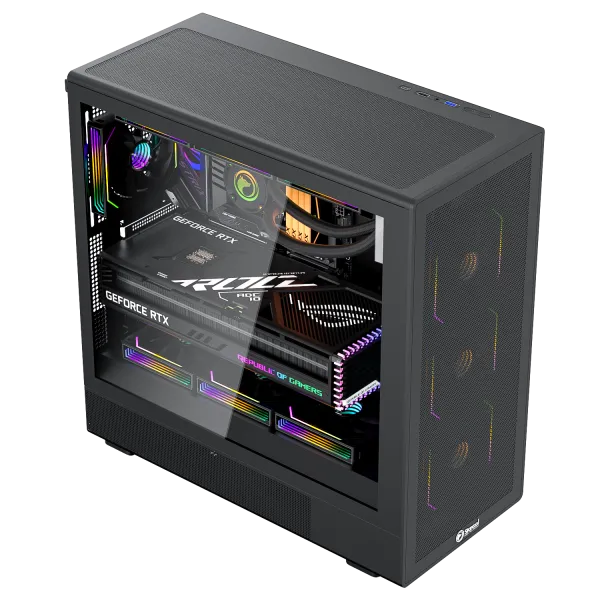

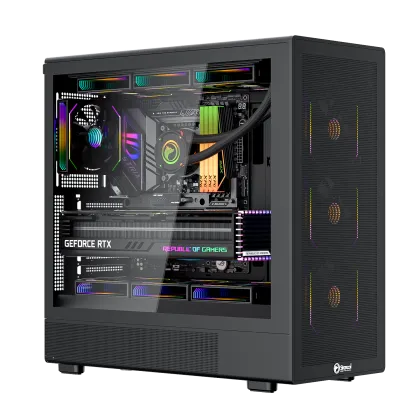

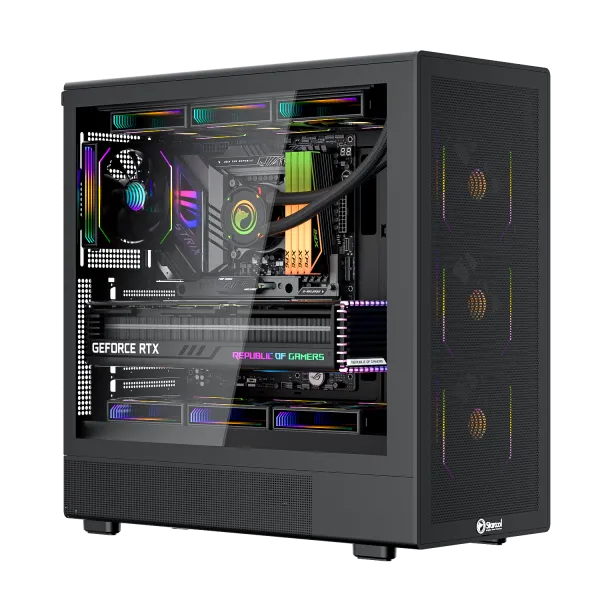

The tempered glass left side panel offers a clear view of your internal RGB lighting and components.
Technical Specifications
| Product Size | 495 * 225 * 485mm (inc. footpads) |
| Structure Size | 470 * 225 * 470mm (metal parts) |
| Main Material | SPCC Black 0.5mm |
| Panel Config | Front Mesh / Left Glass / Right Metal |
| Motherboard | ATX / MATX / ITX |
| Max GPU Length | 425 mm |
| Max CPU Cooler | 170 mm |
| Max PSU Length | 200 mm |
| PCI Slots | 7 Slots |
| Reserved Ports | 10 Total Slots |
| Fan Array | F:3*12 / T:3*12(14) / R:1*12 / PSU:3*12cm |
| Radiator Support | Top: 240 / 280 / 360mm |
| Drive Bays | 1 * 3.5" HDD + 2 * 2.5" SSD |
| I/O Interface | USB 3.0 / USB 2.0 / HD Audio |
| Dust Management | Included (Top Panel) |
