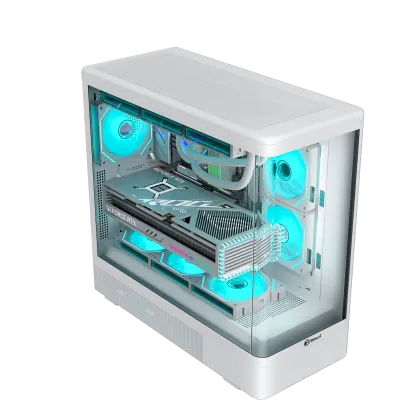

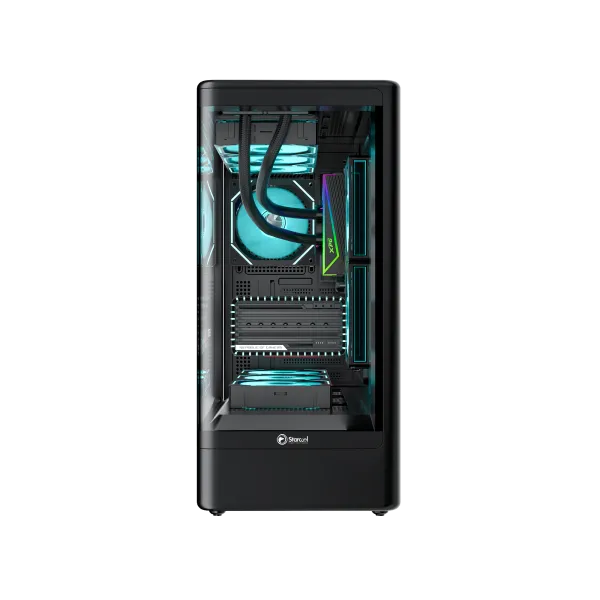

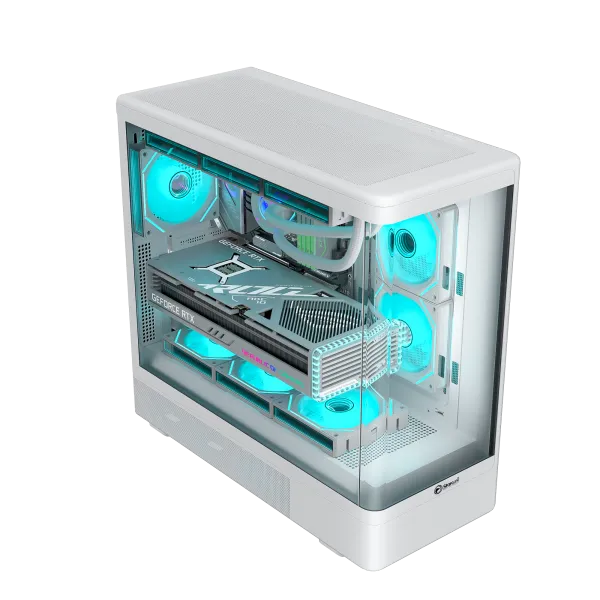

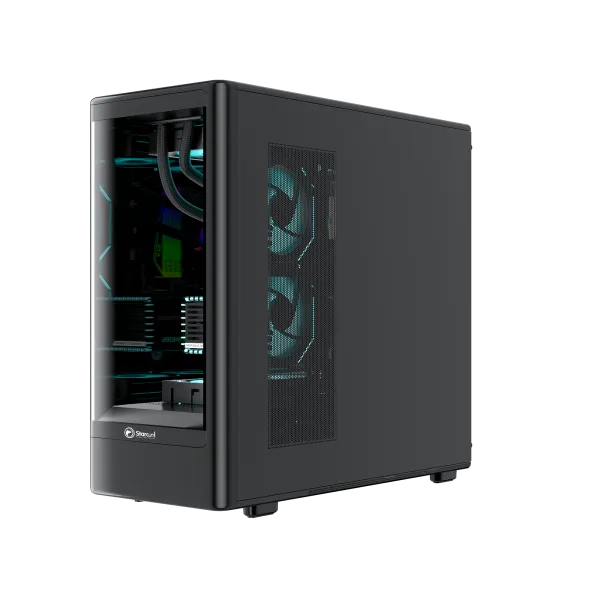

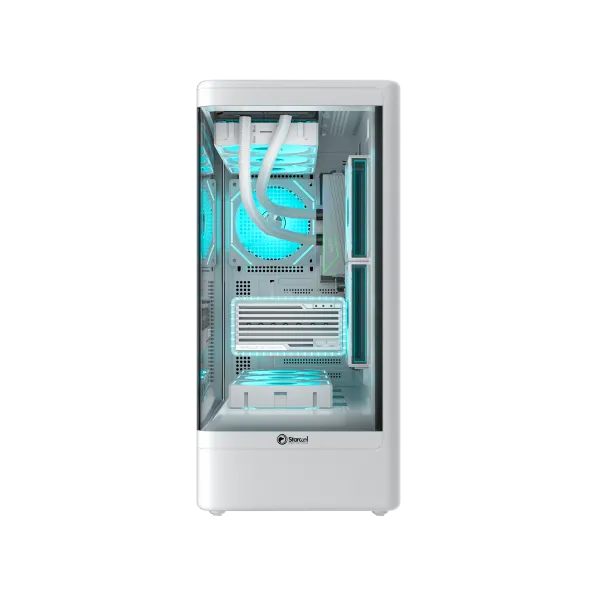

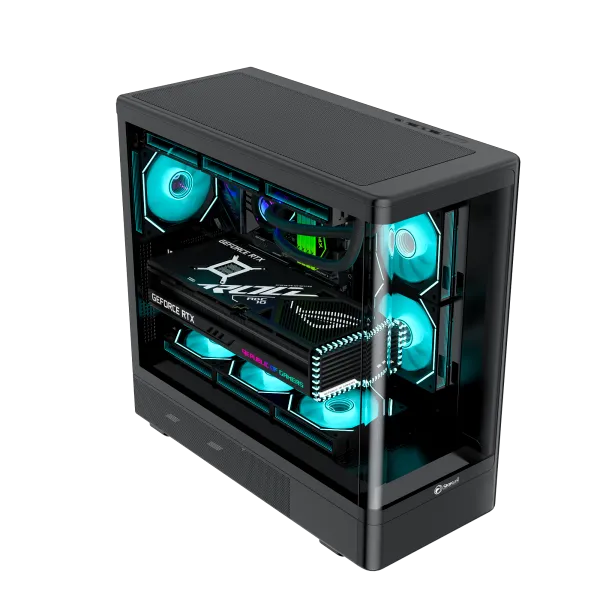

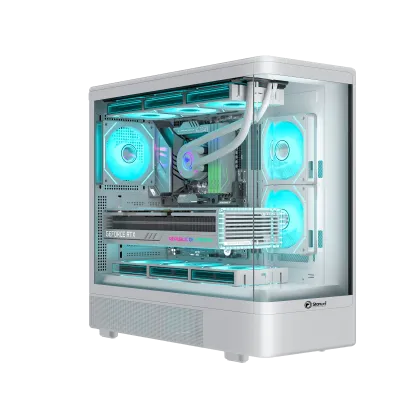

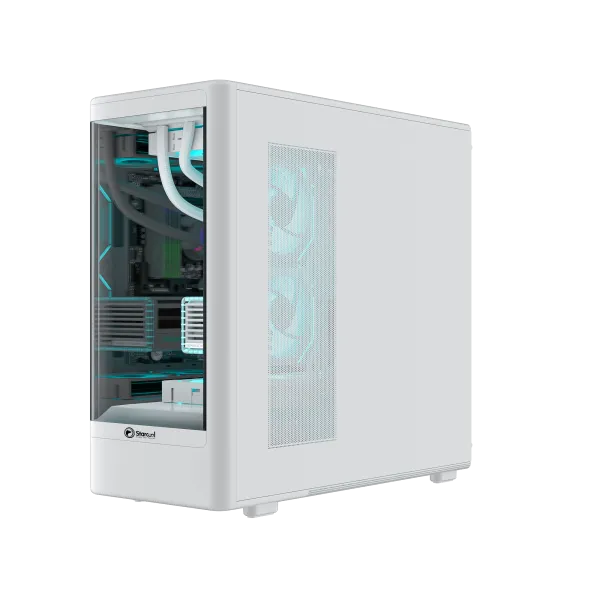

STC-470-R

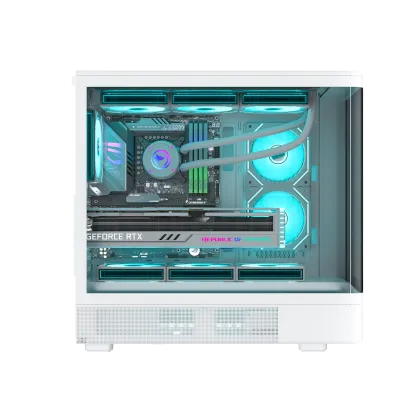

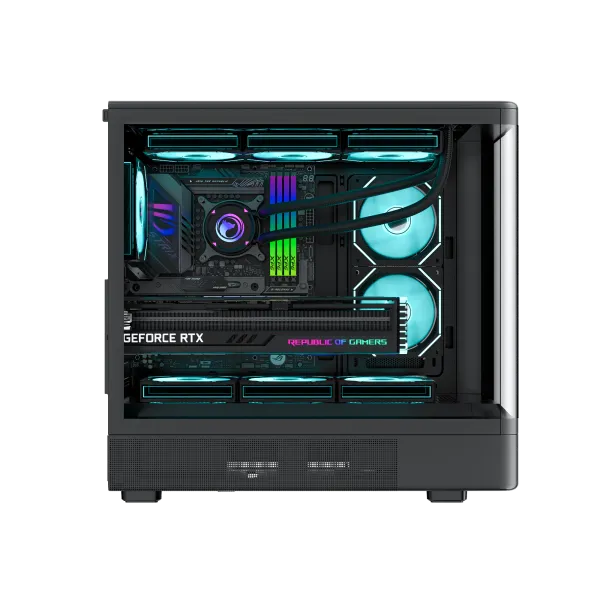

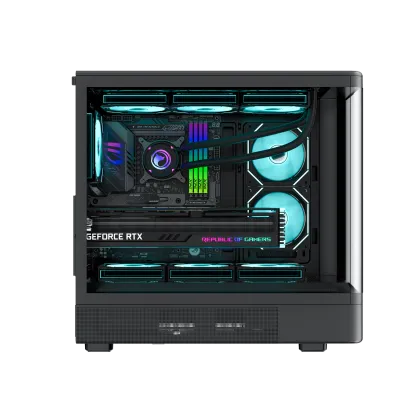

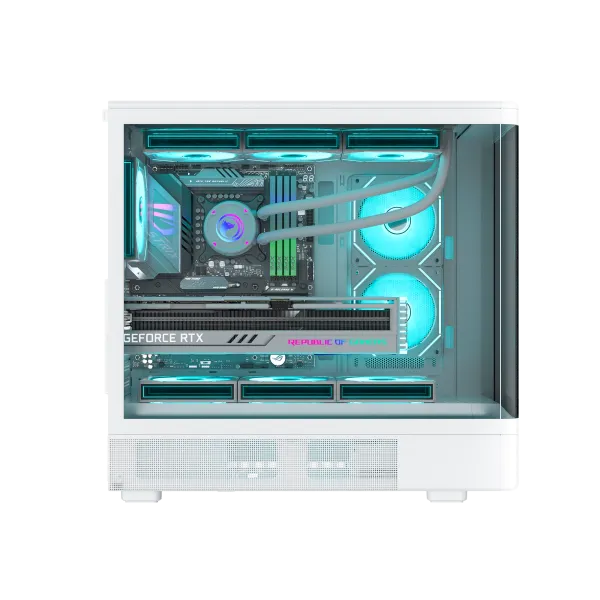

This variant of the STC-470ATX series is a premium mid-tower panoramic PC chassis designed to showcase high-end hardware. Featuring a dual-glass layout (front and side glass), it creates a seamless, aquarium-style view of your components. It offers massive internal space for top-tier graphics cards and advanced liquid cooling configurations, making it a perfect match for custom RGB and enthusiast builds.
Tags: ATX PC Case, M-ATX PC Case
Key Features
STC-470ATX Innovation
Panoramic View

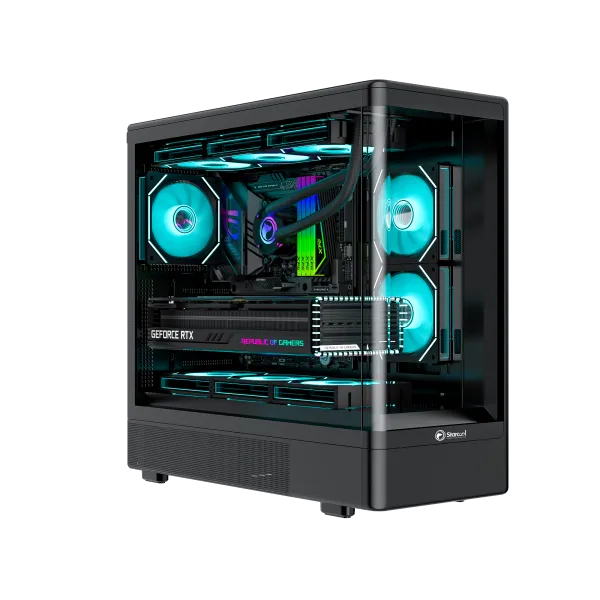

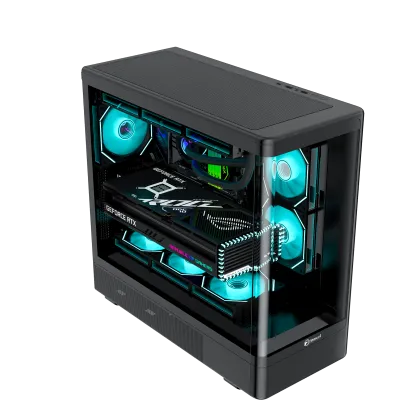

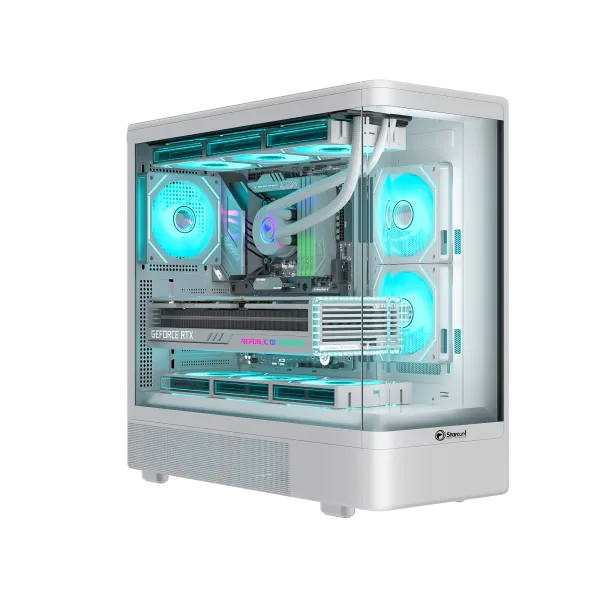

Designed with double-sided tempered glass (front + left) to deliver an unobstructed, premium presentation of your internal hardware.
Massive GPU Clearance
Offers an exceptional graphics card clearance of up to 460mm, comfortably accommodating flagship GPUs.
High-Capacity Airflow
Supports up to 9 fans in total, ensuring comprehensive ventilation across motherboard, top panel, and PSU shroud.
Advanced Liquid Cooling
The top panel is highly versatile, supporting 240mm, 280mm, or 360mm radiators for premium thermal performance.
Modern I/O Interface
Features a fully equipped top-panel interface including a Type-C port alongside USB 3.0, USB 2.0, and HD Audio.
Optional LED Display
Supports an optional modular LED digital display addition for real-time tracking or customized system aesthetics.
Technical Specifications
Product Parameters
| Model | STC-470ATX Series (Dual-Glass Version) |
| Product Size | 495 * 225 * 485mm (including footpads) |
| Structure Size | 470 * 225 * 470mm (metal parts) |
| Material | SPCC Black 0.5mm |
| Panels | Double-sided glass (Front + Left Side), Right side metal |
| Motherboard | ATX / MATX / ITX |
| Max GPU Length | 460mm |
| Max CPU Cooler Height | 170mm |
| Max PSU Length | 200mm |
| PCI Expansion Slots | 7 |
| Reserved Fan Ports | 9 Total (Mainboard: 2*12cm / Top: 3*12 or 14cm / Rear: 1*12cm / PSU: 3*12cm) |
| Water Cooling Support | Top supports 1 * 240mm / 280mm / 360mm radiator (optional) |
| Driver Bays | 1 * 3.5" HDD + 2 * 2.5" SSD |
| I/O Ports | 1 * USB 3.0 + 1 * USB 2.0 + TYPE-C + HD Audio |
| LED Display | Optional digital display support |
