STC-ZJ360MATX

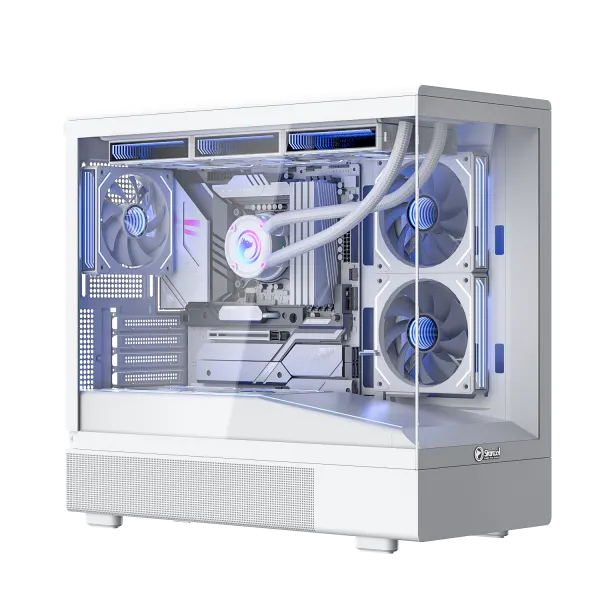

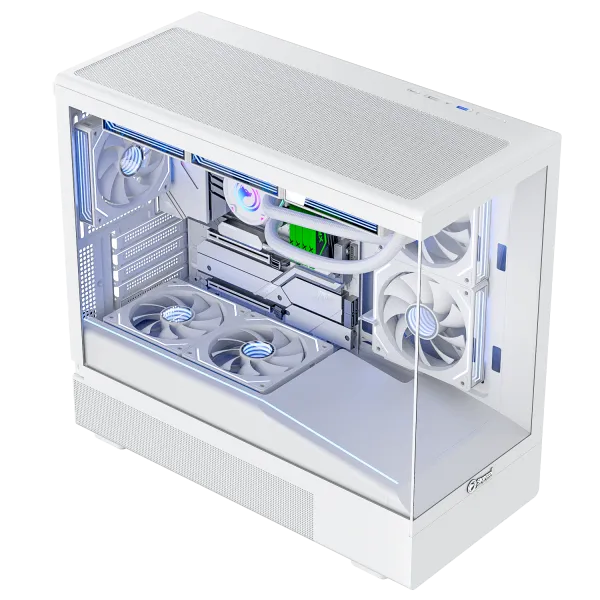

The STC-ZJ360MATX is a premium, compact mid-tower panoramic PC chassis optimized for MATX and ITX hardware configurations. Featuring a double-sided tempered glass layout (front and left panels), it provides an immersive, aquarium-style look at the build. Its signature design element is a unique trapezoidal PSU shroud integrated with custom LED lighting, seamlessly blending massive high-end GPU clearance with an eye-catching, modern aesthetic.
Tags: PC Case Gaming, Gaming Computer Case, Wholesale PC Case, Mesh Panel PC Case, mtx
Key Features
STC-ZJ360MATX Innovation

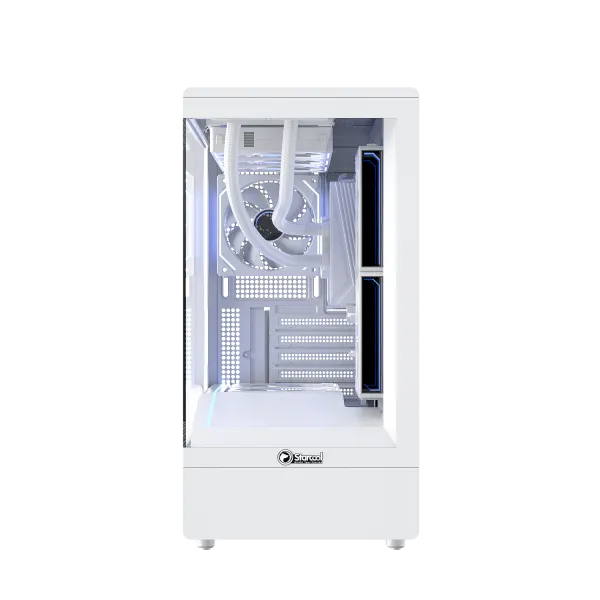

Dual-Panel Panoramic Glass
Outfitted with dual tempered glass panels (front and left side) to provide an unobstructed, theater-like showcase of your custom setup.
Trapezoidal PSU Shroud
Features a distinctively shaped trapezoidal power supply compartment built with an integrated, motherboard-syncable RGB strip.
Flagship GPU Space
Despite its space-optimized MATX design, it offers a massive graphics card clearance of up to 460mm, fitting the largest GPUs.
8-Fan Airflow Network
Engineered to accommodate up to 8 fans simultaneously, ensuring optimal thermal management across all primary zones.
Top 360mm Liquid Cooling
Offers robust cooling versatility, allowing a 240mm, 280mm, or 360mm liquid radiator to be mounted directly on the top panel.
Excellent Tower Clearance
Fits air coolers up to 170mm in height, providing full compatibility with high-performance air-cooling towers.
Technical Specifications
Product Parameters
| Model | STC-ZJ360MATX |
| Product Size | 473 * 225 * 445mm (including footpads) |
| Structure Size | 470 * 225 * 430mm (inner metal parts) |
| Material | SPCC Black 0.5mm |
| Panels | Double-sided glass (Front + Left Side), Right side metal |
| Motherboard Form Factor | MATX / ITX |
| Max GPU Length | 460mm |
| Max CPU Cooler Height | 170mm |
| Max PSU Length | 200mm |
| PCI Expansion Slots | 4 Slots |
| Reserved Fan Ports | 8 Total (Mainboard: 2*12cm / Top: 3*12 or 14cm / Rear: 1*12cm / PSU Shroud: 2*12cm) |
| Water Cooling Support | Top panel supports 1 * 240mm / 280mm / 360mm radiator (optional) |
| Driver Bays | 1 * 3.5" HDD + 2 * 2.5" SSD |
| I/O Surface Panel | 1 * USB 3.0 + 1 * USB 2.0 + HD Audio |
| Dust Filter | Included (Top Panel) |
| Specification | Details |
|---|---|
| Case Type | Mid-Tower Chassis |
| Model | STC-ZJ360MATX |
| Color | White (as shown; customizable) |
| Dimension | 473mm(L) × 225mm(W) × 445mm(H) |
| Material | 0.5mm SPCC Black + Tempered Glass |
| Panel Design | Left side tempered glass, right side metal panel |
| Special Features | Double-sided tempered glass with trapezoidal LED power shroud |
| Motherboard Support | ATX |
| Expansion Slot | 4 |
| Storage | 1×3.5" HDD + 2×2.5" SSD |
| GPU Length Clearance | Max 460mm |
| CPU Cooler Height Clearance | Max 170mm |
| PSU Support | Standard ATX PSU |
| Fan Support | Mainboard side: 2×120mm (optional)Rear: 1×120mm (optional)Top: 3×120mm/140mm (optional)PSU Top: 2×120mm (optional) |
| Radiator Support | Top: 240mm / 280mm / 360mm (optional) |
| I/O Ports | 1×USB 3.0 + 1×USB 2.0 + HD Audio |
