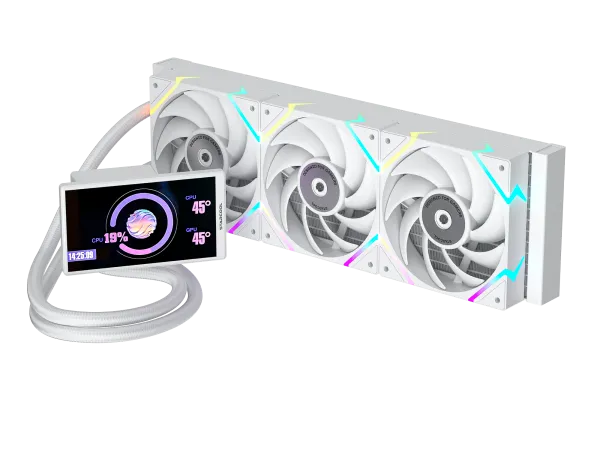

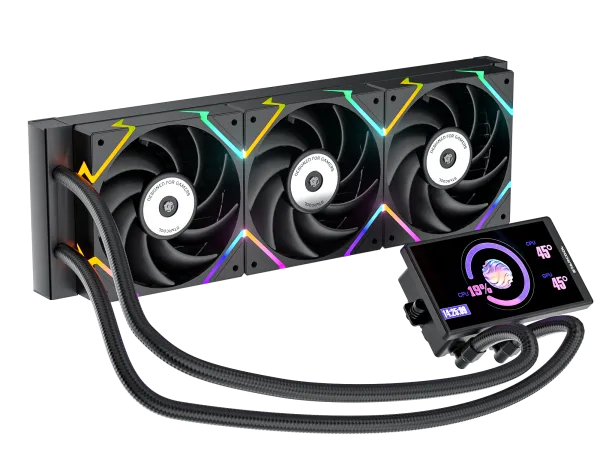

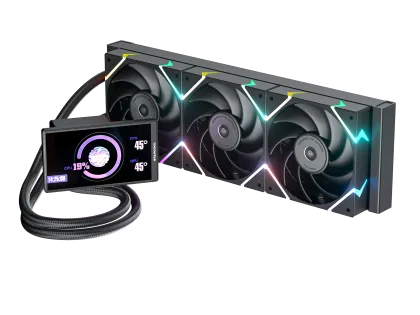

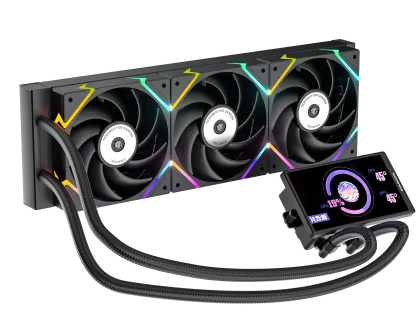

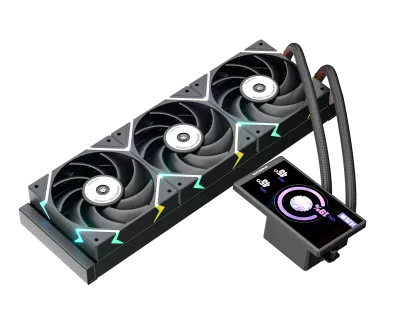

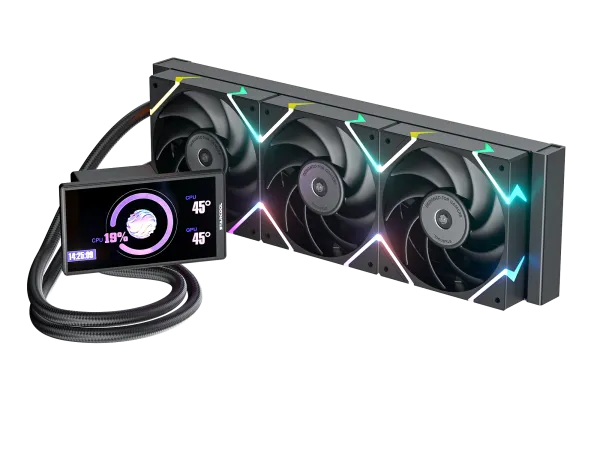

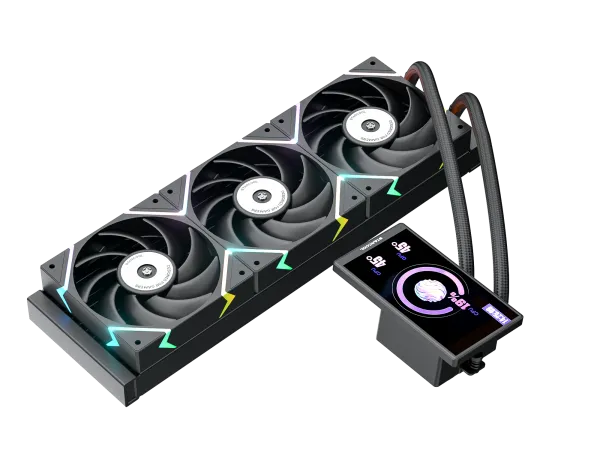

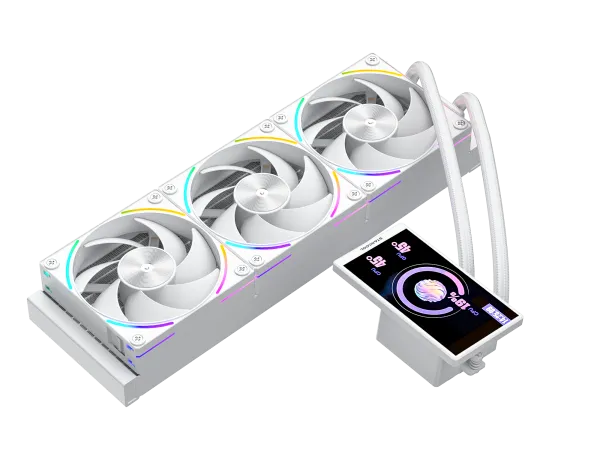

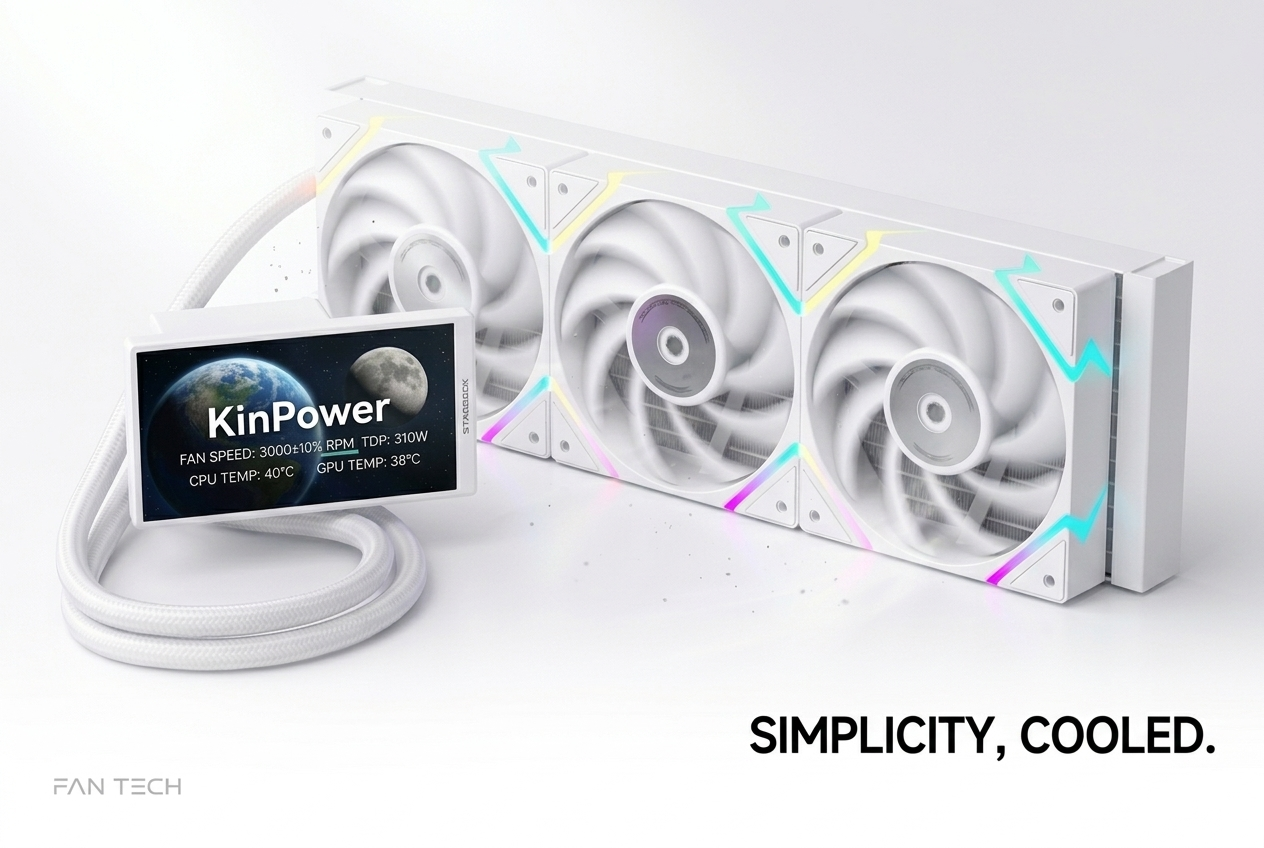

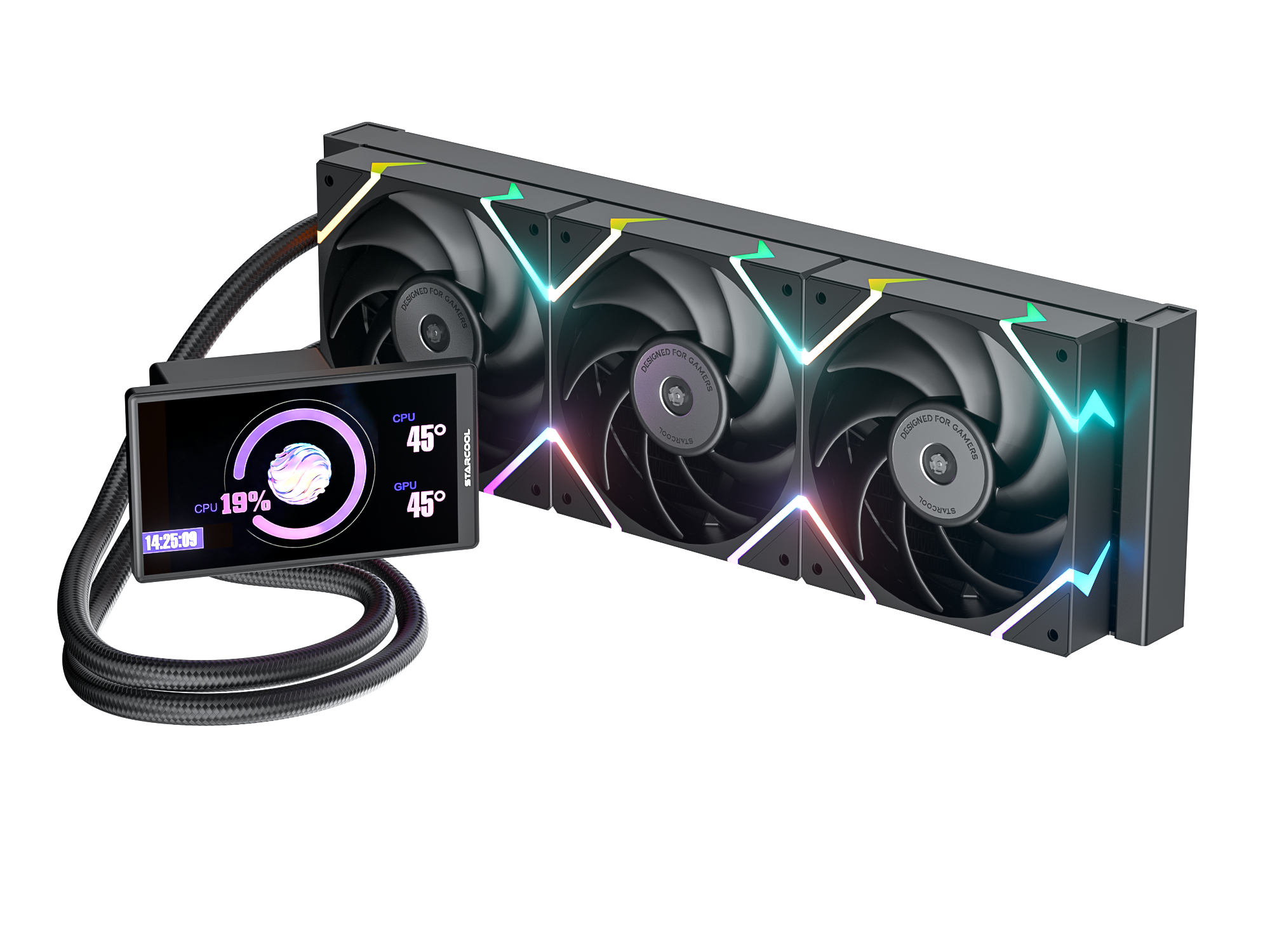

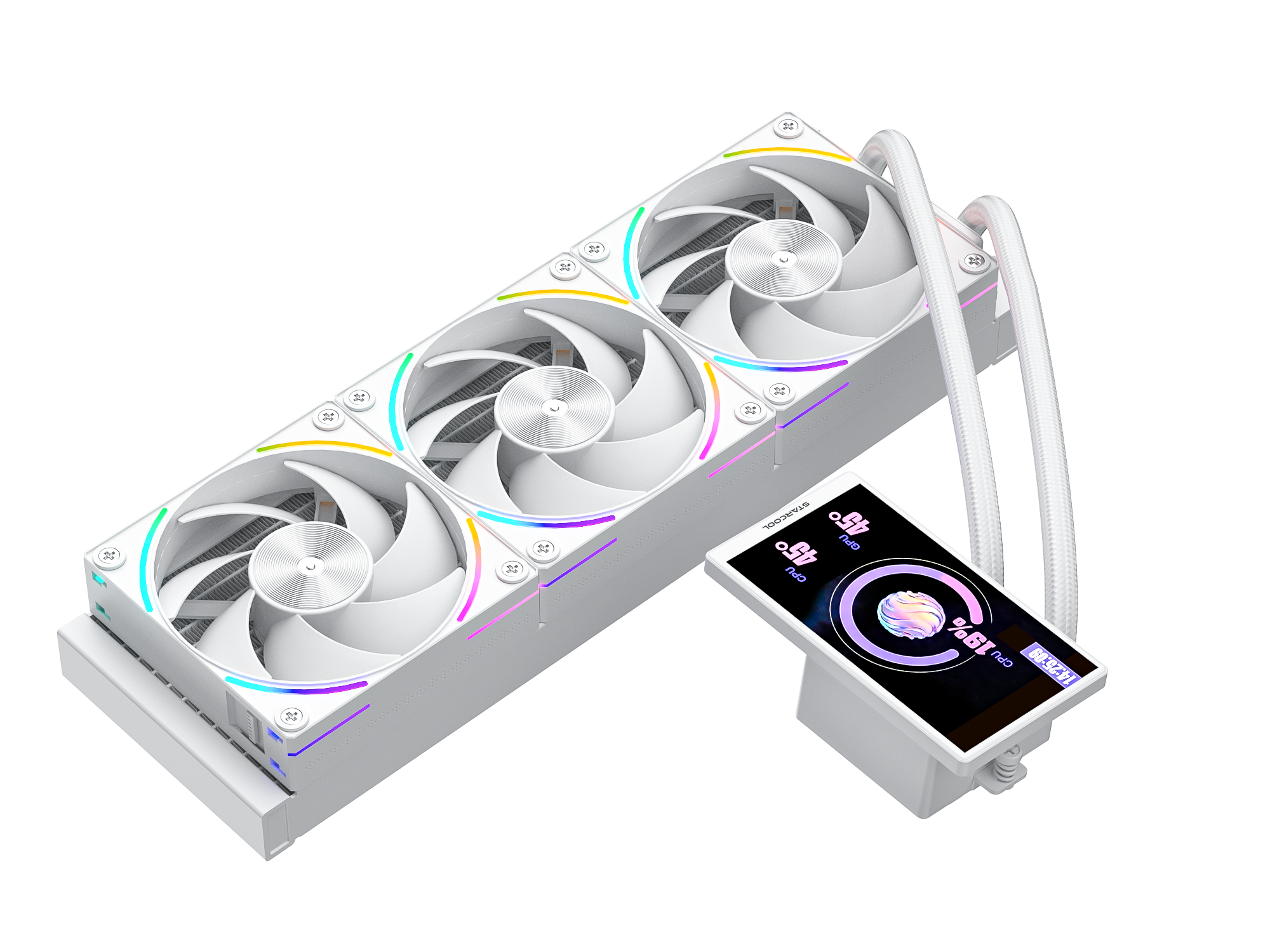

IRV360WH
Engineered for hardcore gamers and high-performance PC platforms, this premium All-In-One (AIO) liquid cooler delivers an extreme thermal design power (TDP) of 310W, effortlessly taming the latest flagship processors from Intel and AMD. The pump block features an innovative 5.5-inch magnetic LCD smart display for real-time system monitoring and personalized visual themes. Equipped with high-static pressure 120mm ARGB fans, it seamlessly fuses elite cooling efficiency with cutting-edge gaming aesthetics.
Tags: AIO liquid cooler LCD, CPU cooler, ARGB water cooling, magnetic screen PC cooler, Intel LGA 1851 cooler, AMD AM5 liquid radiator, high static pressure fan, smart display CPU cooler, gaming PC water cooler, quiet AIO cooling system
IRV360WH ARGB
5.5" MAGNETIC LCD CONTROL
Visual Interface5.5" Magnetic LCD Display
High-definition 60FPS screen for real-time stats; detachable magnetic snap-on design for a cable-free aesthetic.
Thermal Performance310W Extreme TDP Capable
Engineered to stabilize next-gen high-performance CPUs under maximum thermal loads, ensuring peak clock speeds without throttling.
Precision EngineeringHigh-Speed Whispering Pump
Ultra-flow 4500RPM motor paired with Zero-Resonance tech for elite cooling at near-silent levels.
DASHBOARD METRICS MODE
Real-time tracking of critical hardware vitals including CPU/GPU temperatures, exact frequencies, voltages, wattage, and fan curves visualized through interactive, elite-gaming UI layouts.
Airflow OptimizationHigh-Static Pressure Fans
Optimized blade geometry to penetrate dense radiator fins, featuring cable-free magnetic daisy-chaining for ultimate build simplicity.
Future-ProofUniversal Next-Gen Sockets
Out-of-the-box compatibility with all 2026 mainstream platforms, including Intel LGA1851 and AMD AM5+.
TECHNICAL DATASPECIFICATIONS
Pump & Radiator
| Pump Head Size | 133 × 75 × 53 mm |
| Radiator Size | 397 × 120 × 27 mm |
| Nominal Voltage | DC 12V |
| Rated Power | ≤ 5.4W |
| Pump Speed | 3000 ± 10% RPM |
| Tube Length | 400 mm |
| Light Effect | ARGB |
| Noise Level | ≤ 28 dB(A) |
| Data Interface | 9PIN USB 2.0 |
| Thermal Design Power (TDP) | 310W |
Display & Features
| Display Type | Magnetic Pump 5.5-inch LCD Display |
ARGB Radiator Fan
| Fan Size | 120 × 120 × 30 mm (3节) |
| Fan Speed | 2700 RPM ± 10% |
| Interface | 3pin 5V ARGB + Small 4PIN PWM |
| Max Airflow | 96 CFM ± 5% |
| Max Static Wind Pressure | 4.31 mmH₂O ± 5% |
| Rated Power | 3.84W ± 10% |
Logistics & Package
| Carton Size (Ctn Size) | 45.8 × 44.6 × 31.3 cm |
| Gross Weight (G.W.) | 12.5 kg / 4PCS |
| Category | Specification Item | Value |
|---|---|---|
| Pump / Block | Pump Head Size | 133 × 75 × 53 mm |
| Radiator/Drainage Size | 397 × 120 × 27 mm | |
| Nominal Voltage | DC 12V | |
| Rated Power | \(\le \) 5.4W | |
| Pump Speed | 3000 ± 10% RPM | |
| Tube / Pipe Length | 400 mm | |
| Light Effect | ARGB | |
| Noise Level | \(\le \) 28 dB(A) | |
| Data Interface | 9PIN USB 2.0 | |
| Thermal Design Power (TDP) | 310W | |
| ARGB Fan | Fan Size | 120 × 120 × 30 mm |
| Fan Speed | 2700 RPM ± 10% | |
| Interface | 3pin 5V ARGB + Small 4PIN PWM | |
| Max Airflow | 96 CFM ± 5% | |
| Max Static Wind Pressure | 4.31 mmH₂O ± 5% | |
| Rated Power | 3.84W ± 10% | |
| Display & Features | Display Type | Magnetic Pump 5.5-inch LCD Display |
| Compatibility | Intel Sockets | LGA 115X / 1200 / 1700 / 1851 |
| AMD Sockets | Socket AM4 / AM5 | |
| Logistics / Package | Carton Size (Ctn Size) | 45.8 × 44.6 × 31.3 cm |
| Gross Weight (G.W. w/packing) | 12.5 kg/ 4PCS |
